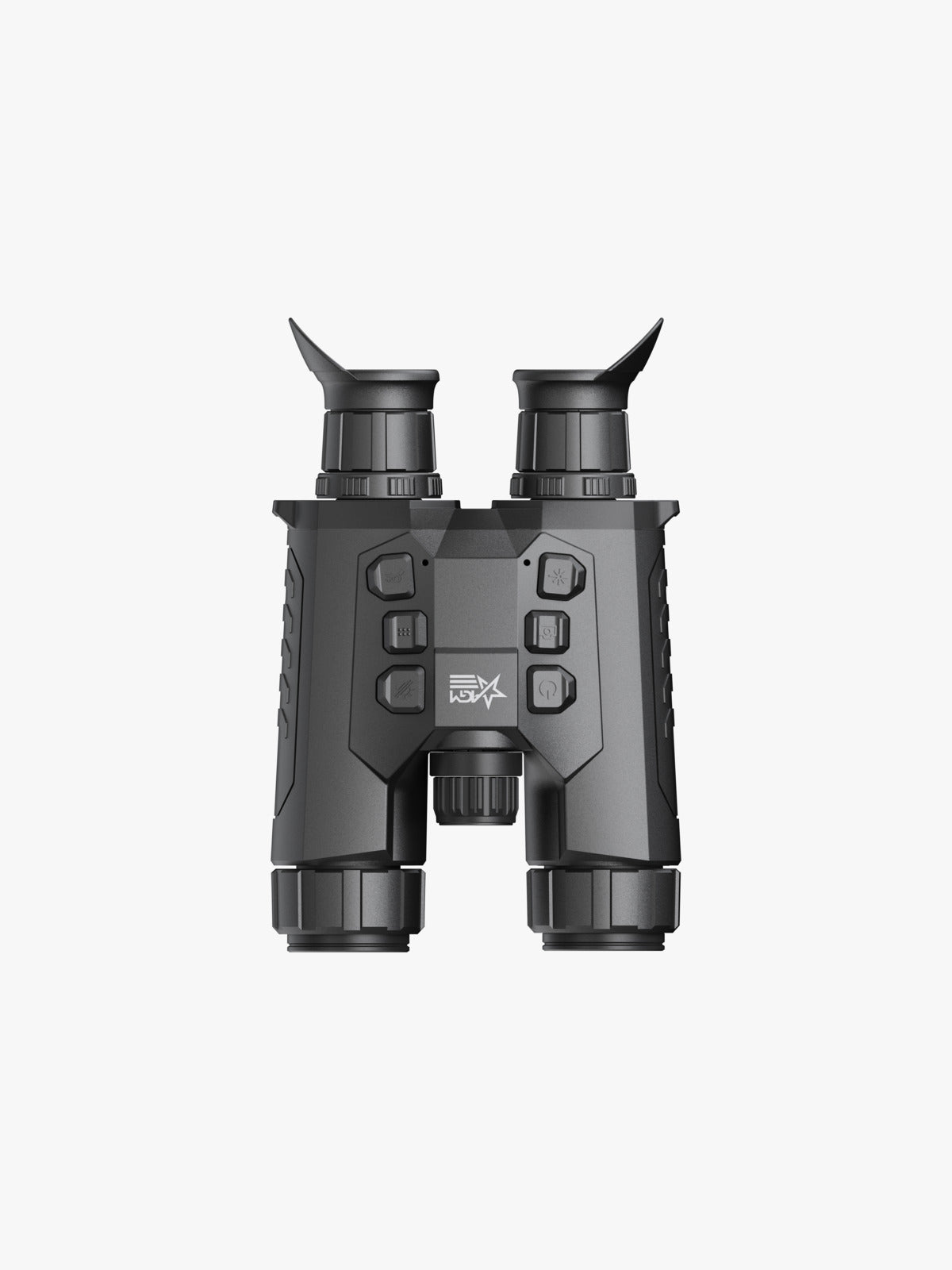

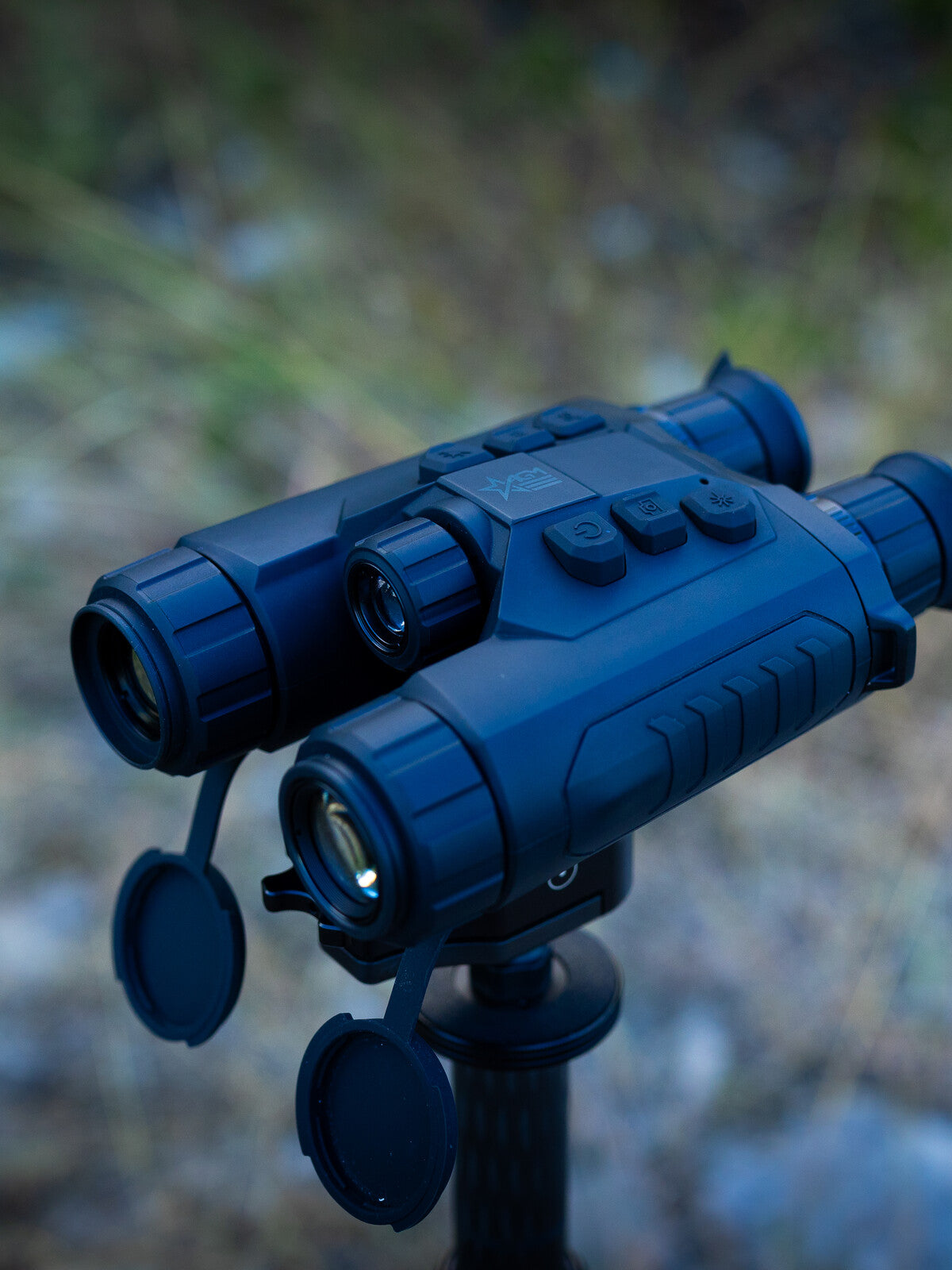

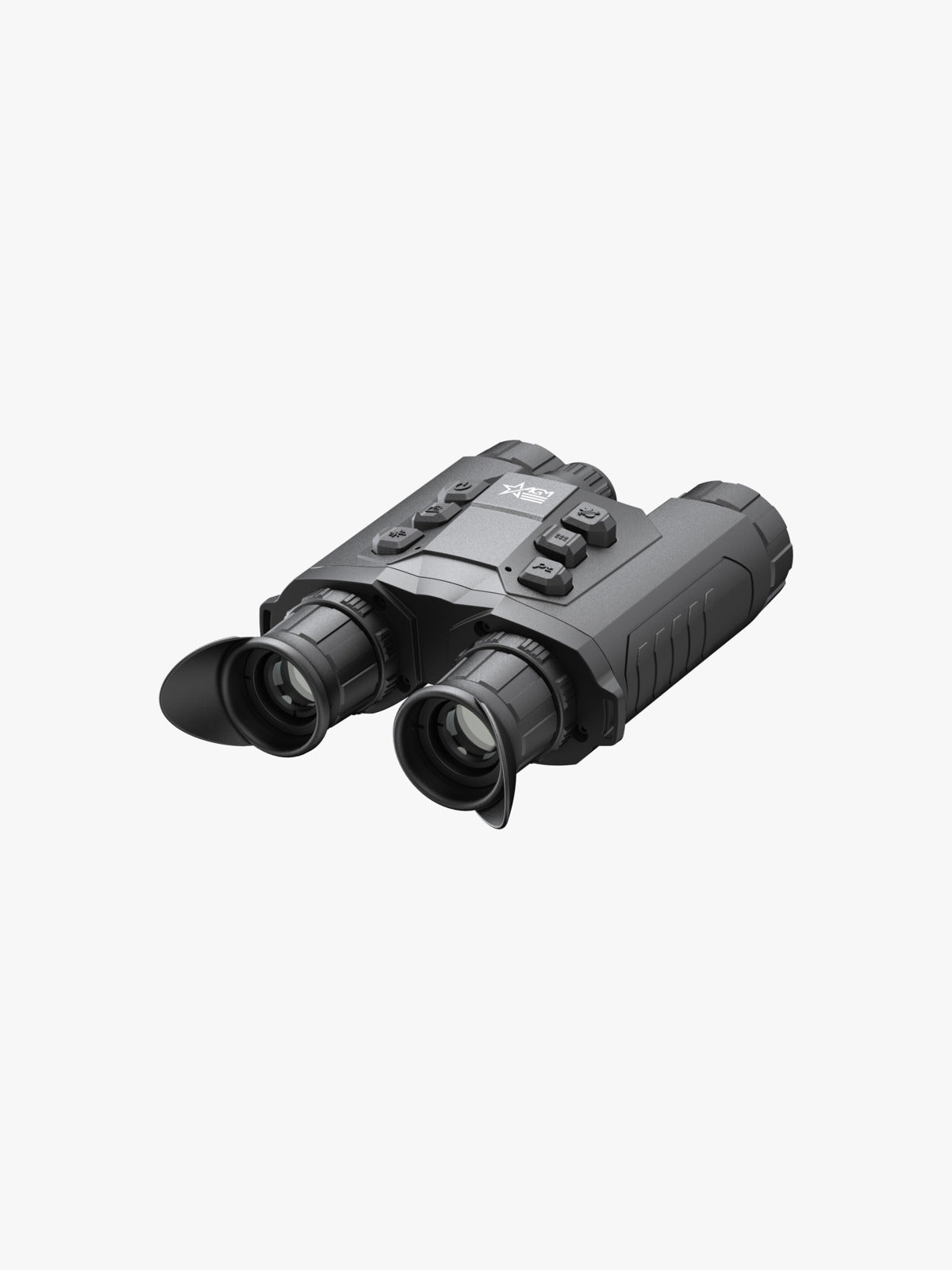

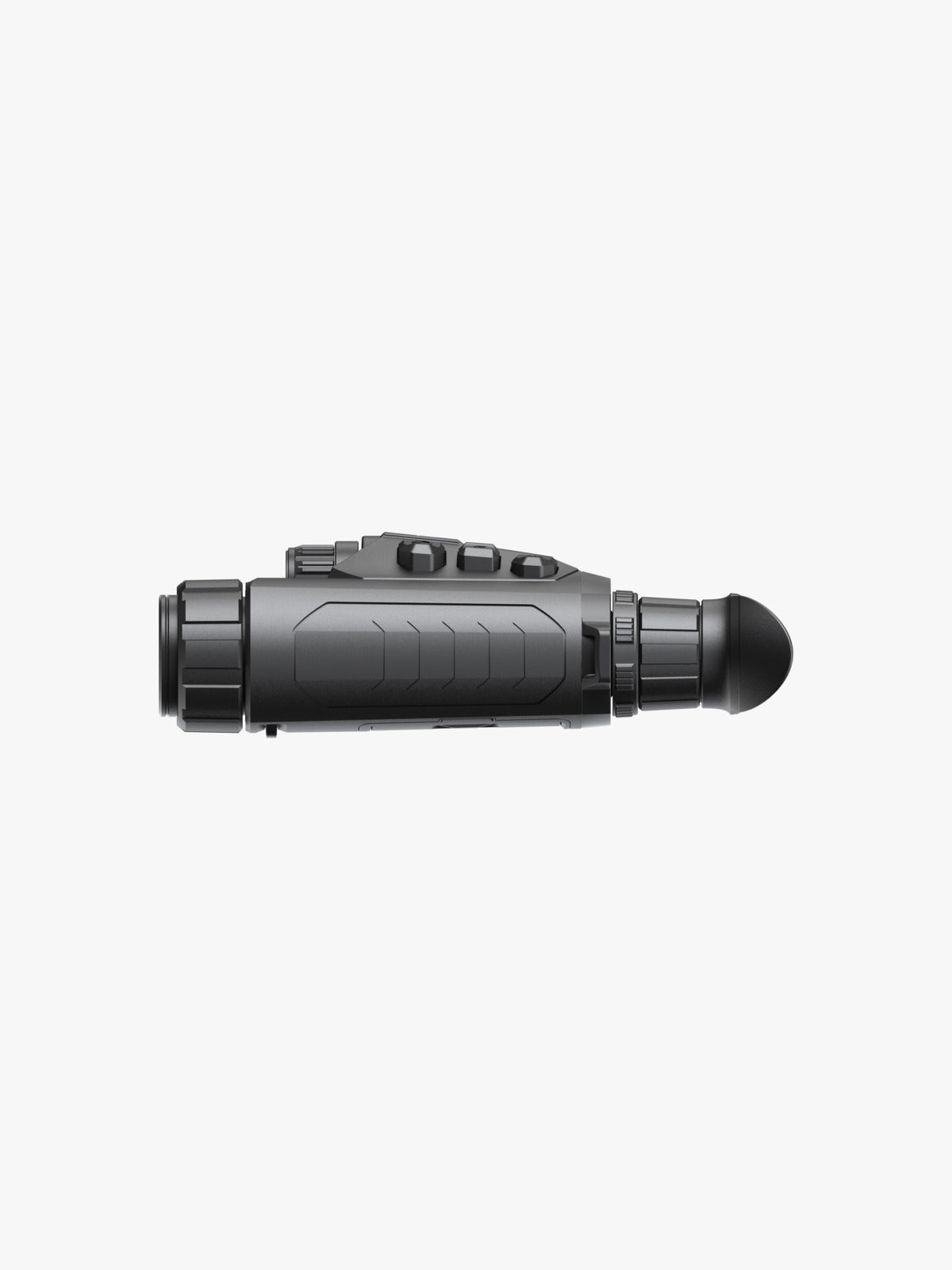

AGM ObservIR LRF 35-384 Thermal Binocular

Core Features

A dual-spectrum binocular for finding, identifying and ranging game from one handheld. The ObservIR LRF 35-384 runs a 384x288, 12 micron thermal sensor with NETD under 15 mK behind a 35 mm F1.0 lens for 4x base magnification and detection of a 6 foot heat source to about 1,800 meters (1,969 yards). A second 3840x2160 low-light digital channel with a built-in 850 nm IR illuminator lets you confirm what the thermal channel found, out to 400 meters at night. The Class 1 rangefinder reads to 1,000 meters with plus or minus 1 meter accuracy. GPS, a digital compass, 64 GB of recording and Wi-Fi are built in. Two removable 18650 batteries run up to 9.5 hours, and four batteries, a charger, a wrist strap and a tripod adapter come in the box. IP67 waterproof and backed by AGM's 5-year warranty.

Thermal Channel

The 384x288 VOx detector has NETD under 15 mK and runs at 50 Hz, which holds detail on damp, low-contrast nights. The 35 mm F1.0 lens gives a 7.5 x 5.7 degree field of view, and magnification steps through 4x, 10x and 20x. Black Hot, White Hot, Red Hot and Fusion palettes, Jungle and Recognition scene modes, hot track, and auto, manual or external flat field correction.

4K Digital Day and Night Channel

A 3840x2160 progressive-scan CMOS sensor behind a 60 mm F2.2 lens with 5.5x, 11x and 22x magnification and Day, Night and Auto modes. The built-in 850 nm Smart IR illuminator has adjustable power and beam angle, and night viewing range is 400 meters. Switch from heat signature to a recognizable image without lowering the binocular.

Laser Rangefinder, GPS and Compass

The eye-safe 905 nm Class 1 rangefinder measures to 1,000 meters at plus or minus 1 meter. A built-in GPS module and digital magnetic compass tag your position and heading on screen.

Display and Image Processing

Twin 1920x1080, 0.49 inch OLED displays at 50 frames per second, with -5 to +3 diopter adjustment on each eyepiece and 60 to 74 mm interpupillary adjustment. Image Boost 2.0 and Zoom Pro processing sharpen detail at every zoom step, and picture-in-picture is available.

Recording and App

Video with audio, snapshots and a local album save to 64 GB of built-in EMMC memory. The Wi-Fi hotspot streams the view or transfers files to a phone.

Power

Two removable, rechargeable 18650 Li-ion batteries run up to 9.5 hours at 25 degrees C with Wi-Fi, IR and the rangefinder off. The USB Type-C port supports a 5 V / 2 A power bank and direct charging. Four batteries and a charger are included; standby mode and auto screen-off stretch a full night.

Durability

IP67 waterproof and dustproof, rated from -30 to +55 degrees C. The unit measures 221 x 142 x 71 mm (8.7 x 5.6 x 2.8 inches) and weighs 0.91 kg (2.01 lb) without batteries.
