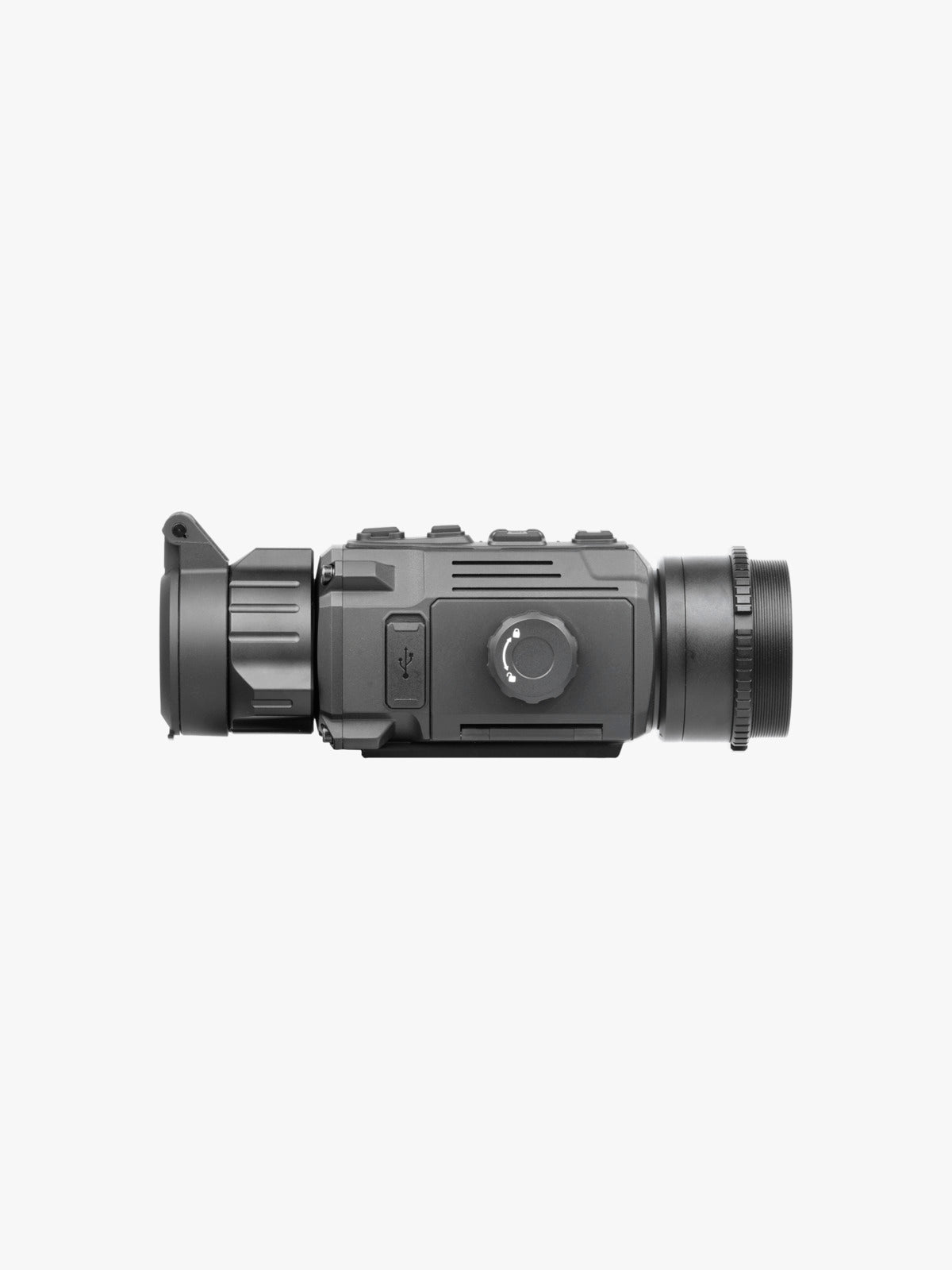

AGM Rattler-C V2 19-256 thermal clip-on, side profile
AGM Rattler-C V2 19-256 thermal clip-on, side profile, logo side

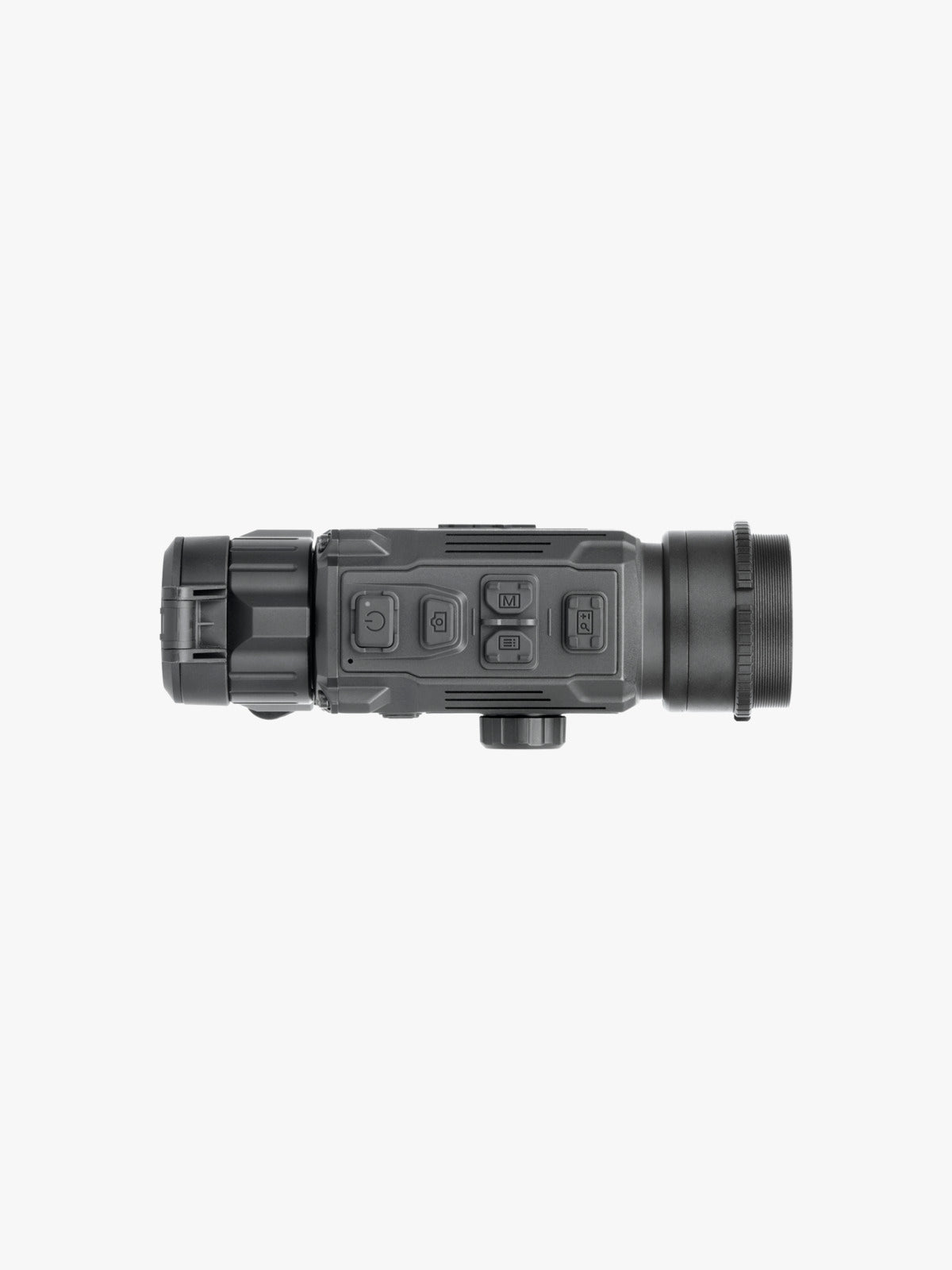

AGM Rattler-C V2 19-256 thermal clip-on, top view

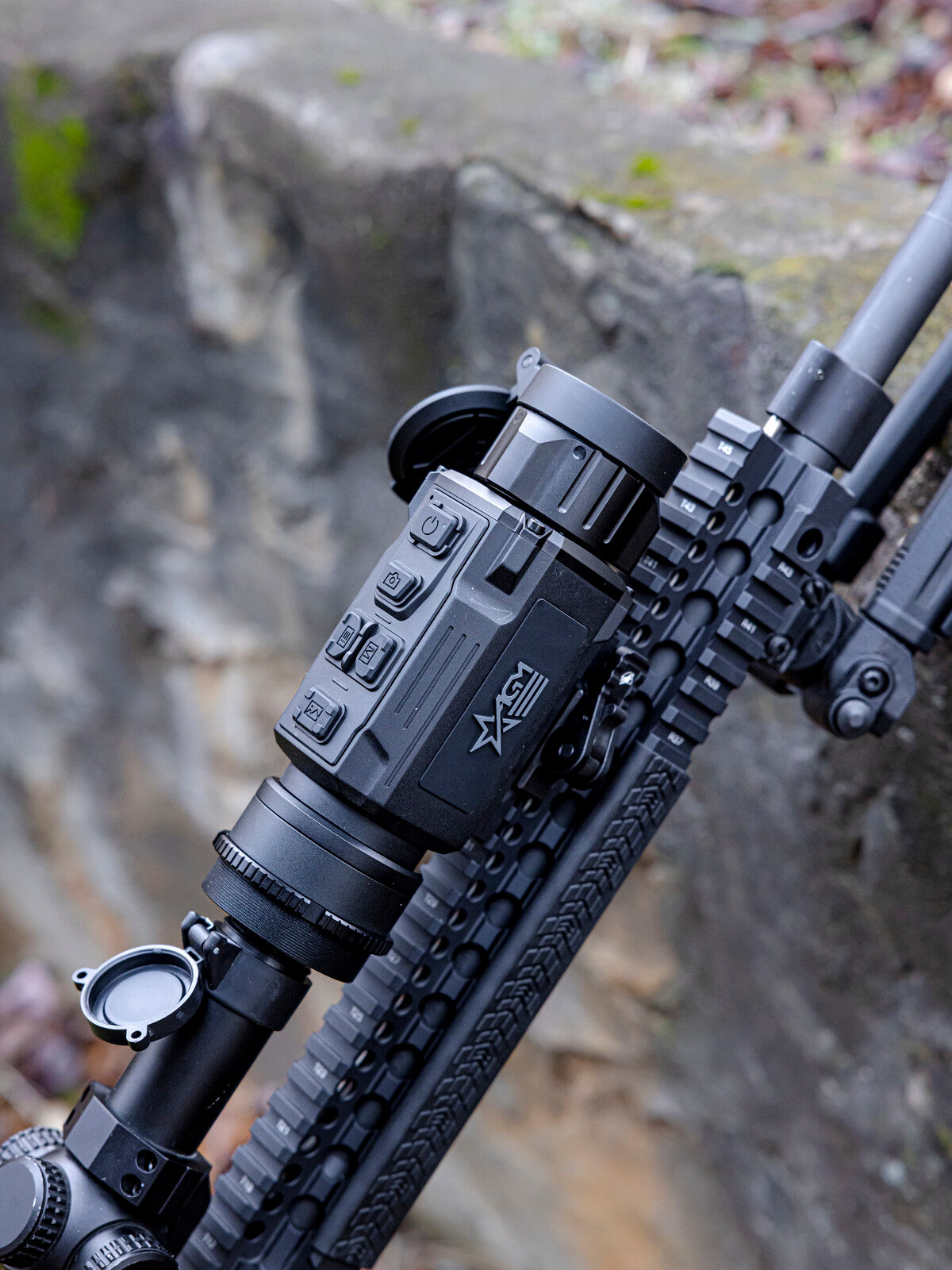

AGM Rattler-C V2 19-256 thermal clip-on, in the field

AGM Rattler-C V2 19-256 Thermal Clip-On

Thermal Clip-On
Sale price$895.00 Regular price$975.00

Core Features

The lowest-cost way to turn the day scope already on your rifle into a thermal for night hunting. The Rattler-C V2 19-256 mounts in front of an LPVO or low-power glass scope (1x to 6x works best) and runs a 256x192, 12 micron sensor behind a 19 mm F1.0 lens at 1x, so your reticle and zero stay the same. It detects a 6 foot heat source to about 1,000 meters (1,094 yards). A single NE-4400 battery runs it for up to 11.5 hours, two batteries come in the box, and shot-activated recording saves the moments before and after each shot to 16 GB of memory. The included ADM Picatinny mount sits at 1.5 inch centerline height; mounting directly to the day scope objective needs a Front Q-R adapter, sold separately. 50 Hz refresh, Wi-Fi, IP67 waterproof, 1000 g recoil rating, and AGM's 5-year warranty.

256 Sensor and 19 mm Lens

The 256x192 VOx detector has NETD under 35 mK and runs at 50 Hz. The 19 mm F1.0 lens gives a 9.3 x 6.9 degree field of view and focuses from 0.5 meters to infinity. Optical magnification is 1x so the image through your day scope stays true, with digital zoom to 8x available when used as a handheld.

Display and Image Controls

A 1024x768, 0.39 inch OLED with 22 mm exit pupil and 10 mm eye relief for the day scope objective. Black Hot, White Hot, Red Hot and Fusion palettes, cold and warm scene modes, hot track, stadiametric distance measurement, defective pixel correction, and auto, manual or external flat field correction.

Recording and Wi-Fi

Video with audio and still capture save to 16 GB of built-in EMMC memory. Shot-activated recording captures each shot automatically. The Wi-Fi hotspot streams live video to a phone and transfers files through the AGM app.

Power

One removable, rechargeable 4400 mAh NE-4400 Li-ion runs up to 11.5 hours at 25 degrees C with the hotspot off; a second battery and charger are included. The USB Type-C port accepts a 5 V / 2 A power bank, and standby mode stretches a long sit.

Mounting and Durability

Ships with an ADM Picatinny mount (1.5 inch centerline). IP67 waterproof, rated for 1000 g / 0.4 ms recoil and -30 to +55 degrees C. The body measures 184 x 68 x 67 mm (7.2 x 2.7 x 2.6 inches) and weighs 0.5 kg (1.1 lb) without mount or battery.
