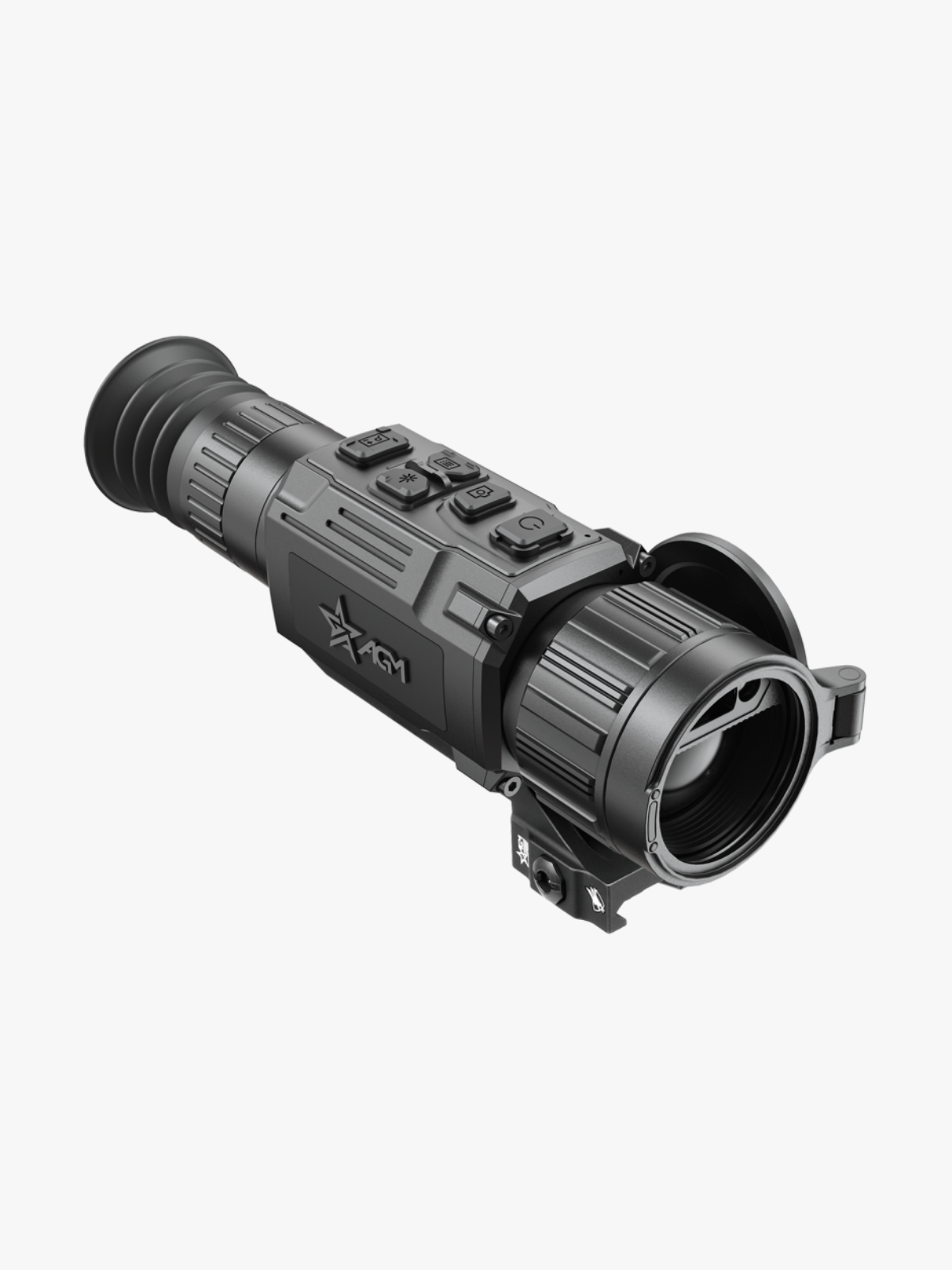

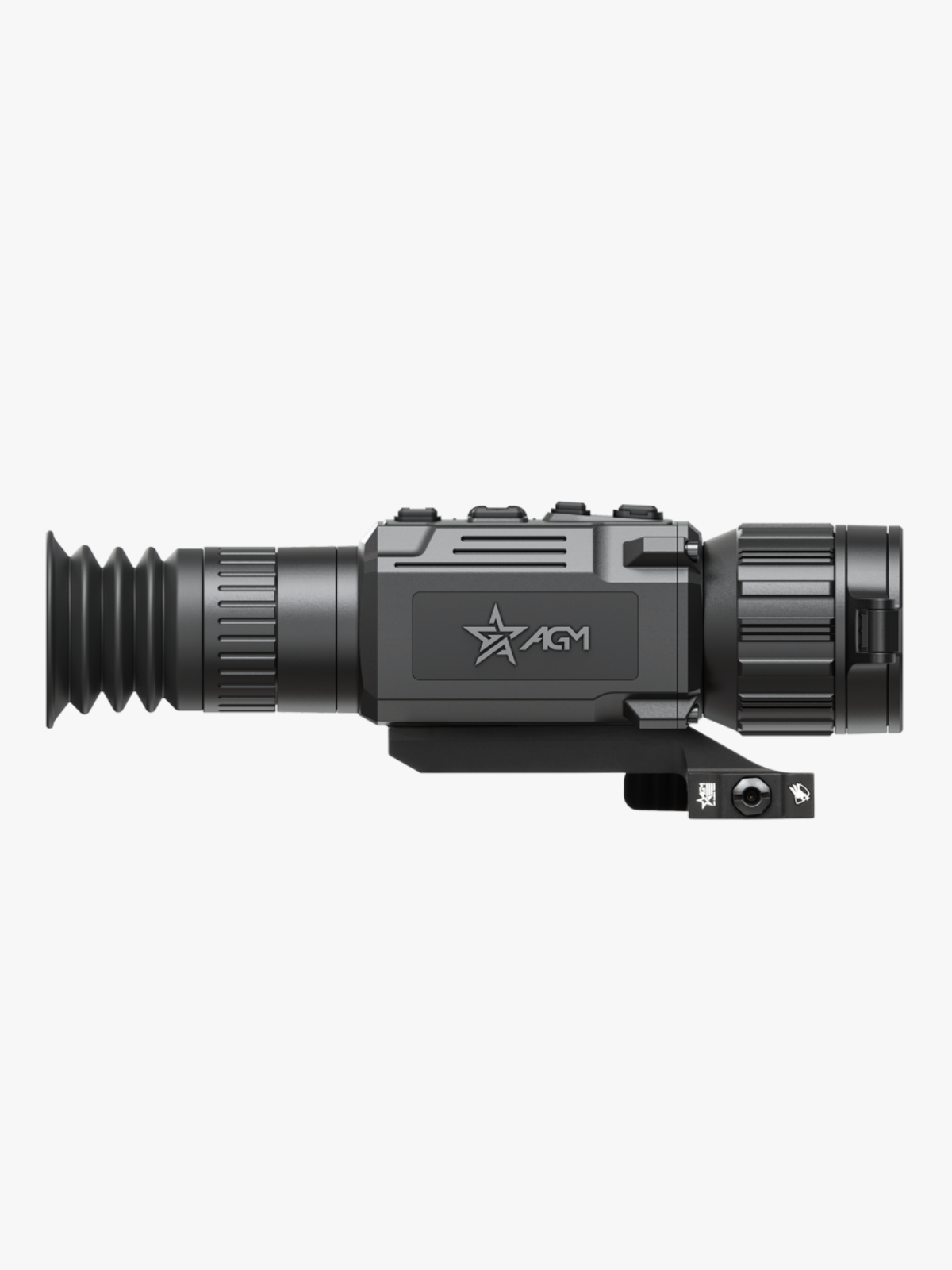

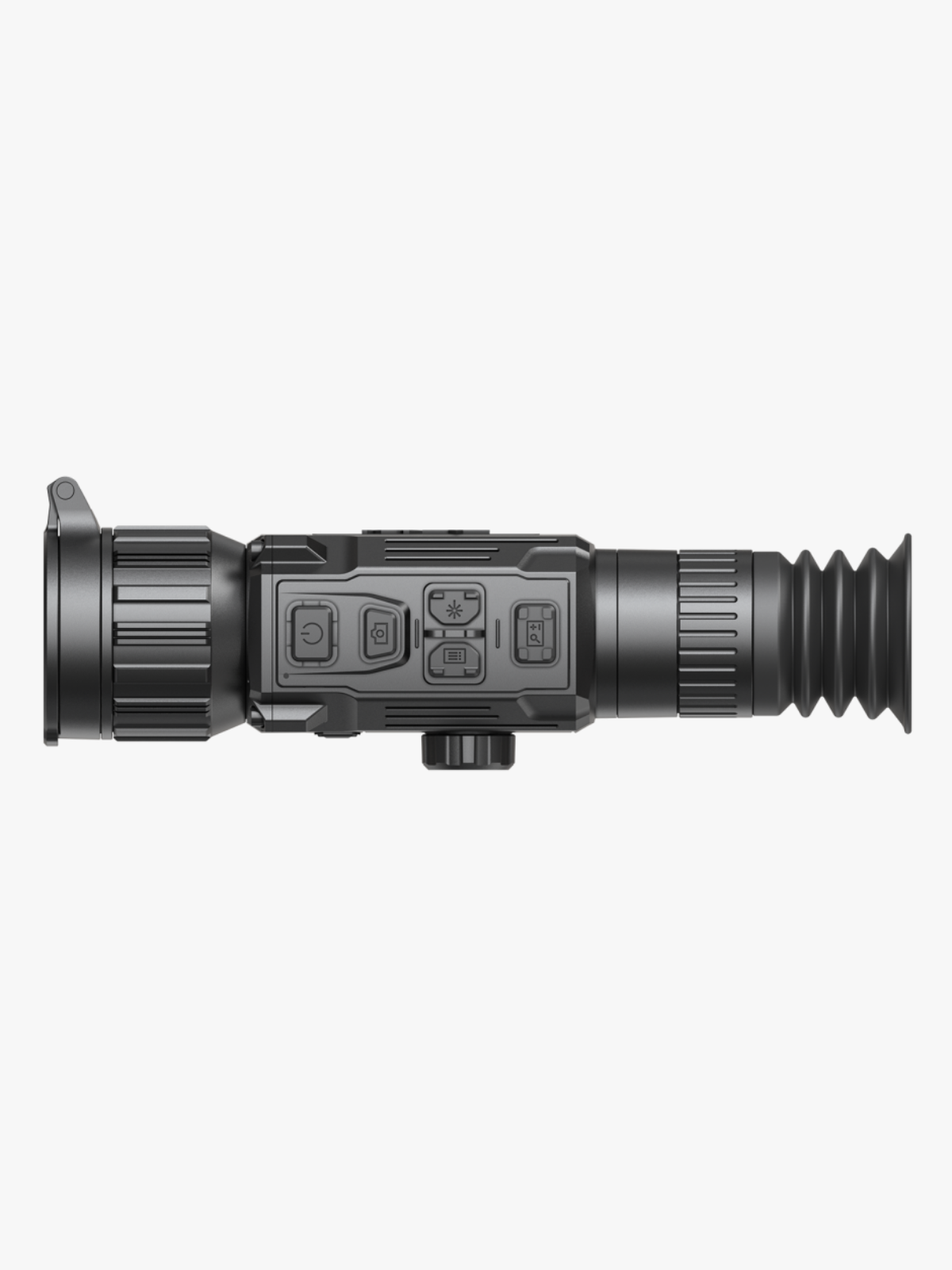

AGM Rattler V3 LRF 35-640

Core Features

A premium professional-grade thermal imaging riflescope engineered for predator hunters demanding the highest resolution thermal imaging combined with integrated laser rangefinding and ballistic calculation capabilities. The optical system provides 2.5x base magnification, expandable to 20x through 8x digital zoom for detailed long-range observation. A 640x512 thermal sensor with industry-leading sub-15mK noise equivalent temperature differential and 50Hz refresh rate delivers exceptionally clear, smooth thermal imagery with 1.5-mile detection capability. The scope includes photo and video recording with shot-activated capture technology. 64GB onboard storage accommodates substantial media libraries, with wireless synchronization to smartphones through WiFi connectivity. Power is supplied by two rechargeable NE-4400 batteries. The scope features an American-made ADM mount compatible with standard Picatinny rail systems, offering professional reliability and precision alignment for the most demanding extended-range predator hunting applications.

Advanced Thermal Imaging

Equipped with a 640x512 resolution thermal sensor featuring 12-micrometer pixel pitch and noise equivalent temperature differential performance at or below 15 milliKelvins—industry-leading thermal sensitivity. The 50Hz refresh rate ensures smooth image rendering without motion artifacts. The shutterless NUC (Non-Uniformity Correction) technology provides continuous thermal imagery without interruption. These specifications collectively deliver superior clarity, detail, and identification capability for extended-range predator observation up to 1.5 miles, enabling confident target recognition at extreme distances.

High-Resolution Display

A 2560x2560 OLED screen (1.03 inch) provides precise image representation with exceptional color depth and contrast. The ultra-high-resolution display coupled with Image Boost 2.0 imaging algorithm delivers outstanding thermal detail across all magnification levels, ensuring reliable target acquisition, repeatable accuracy, and superior situational awareness throughout the magnification range.

Optical Magnification System

The newly designed eyepiece paired with a 35mm Germanium objective lens and 2.5x optical magnification provides optimal performance for wide-open terrain predator hunting. Supplementary 8x digital zoom expands total magnification to 20x, enabling precise identification and targeting of distant subjects. The 12.5° × 10.0° field of view provides exceptional situational awareness. A quick-throw zoom lever facilitates rapid magnification changes during dynamic field operations.

Integrated Laser Rangefinding System

The first-of-its-kind in-lens laser rangefinder technology is fully integrated into the 35mm Germanium optics, providing fast, accurate distance measurements from 10 to 1,000 meters with ±1 meter accuracy. This revolutionary lens-integrated approach eliminates separate components while maintaining optical quality and rangefinding functionality. The rangefinding data directly feeds into the advanced ballistic calculator for automatic aiming corrections.

Ballistic Calculation Integration

The advanced onboard ballistic calculator processes multiple environmental variables including air temperature, wind speed, ammunition specifications, and target distance. The system automatically computes required aiming corrections and displays ballistic solutions on the device screen and through smartphone connectivity. Multiple laser ranging modes and customizable ballistic profiles enable tailored solutions for specific hunting scenarios and ammunition configurations.

Advanced Imaging Technology

The scope incorporates shutterless NUC technology, eliminating image blackouts common in traditional flat-field correction systems. The Image Boost 2.0 imaging algorithm intelligently enhances thermal detail and contrast, producing the best-in-class 640-resolution thermal image while maintaining natural appearance without artificial artifacts. The high-resolution 2560x2560 display maximizes the potential of the 640x512 sensor.

Targeting and Focusing

Large, sturdy buttons are designed to aid gloved fingers in cold winter weather. The manual focus mechanism with diopter adjustment range of -5D to +5D accommodates individual eyesight variations and provides extended focus range. This design facilitates rapid target acquisition and precise image sharpening in all conditions.

Recording and Documentation

The scope records video at 1280x1280 resolution with integrated audio and captures snapshot images. Shot-activated recording automatically preserves footage from the moments preceding and following each shot. All content saves to 64GB of internal EMMC storage, providing substantial capacity for extended hunting sessions and comprehensive post-shot analysis.

Advanced Customization

The firmware package allows users an amazing level of customization: on-board pitch scale, 10 brightness and contrast settings, warm & cold viewing modes, multiple color palettes (Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome), picture-in-picture mode, 10 reticle types in 4 colors, multiple zeroing profiles, defective pixel repair, hotspot locator, and multiple laser rangefinding modes.

Wireless Connectivity

Built-in Wi-Fi capability enables real-time data sharing, supporting firmware updates, ballistic data synchronization, remote device management, and configuration management through smartphone connectivity and WiFi hotspot functionality.

Power Management

Two rechargeable NE-4400 Li-Ion batteries provide over 5.5 hours of continuous operational runtime. The removable battery design facilitates extended field use and minimizes downtime during hunting expeditions. A USB Type-C external power supply (5V DC/2A) enables field charging capabilities and extends operational time.

Mounting System

The American-made ADM 2120 mount (included) provides secure attachment to standard Picatinny rail systems, offering professional reliability and precision alignment through repeated mounting and dismounting cycles.
