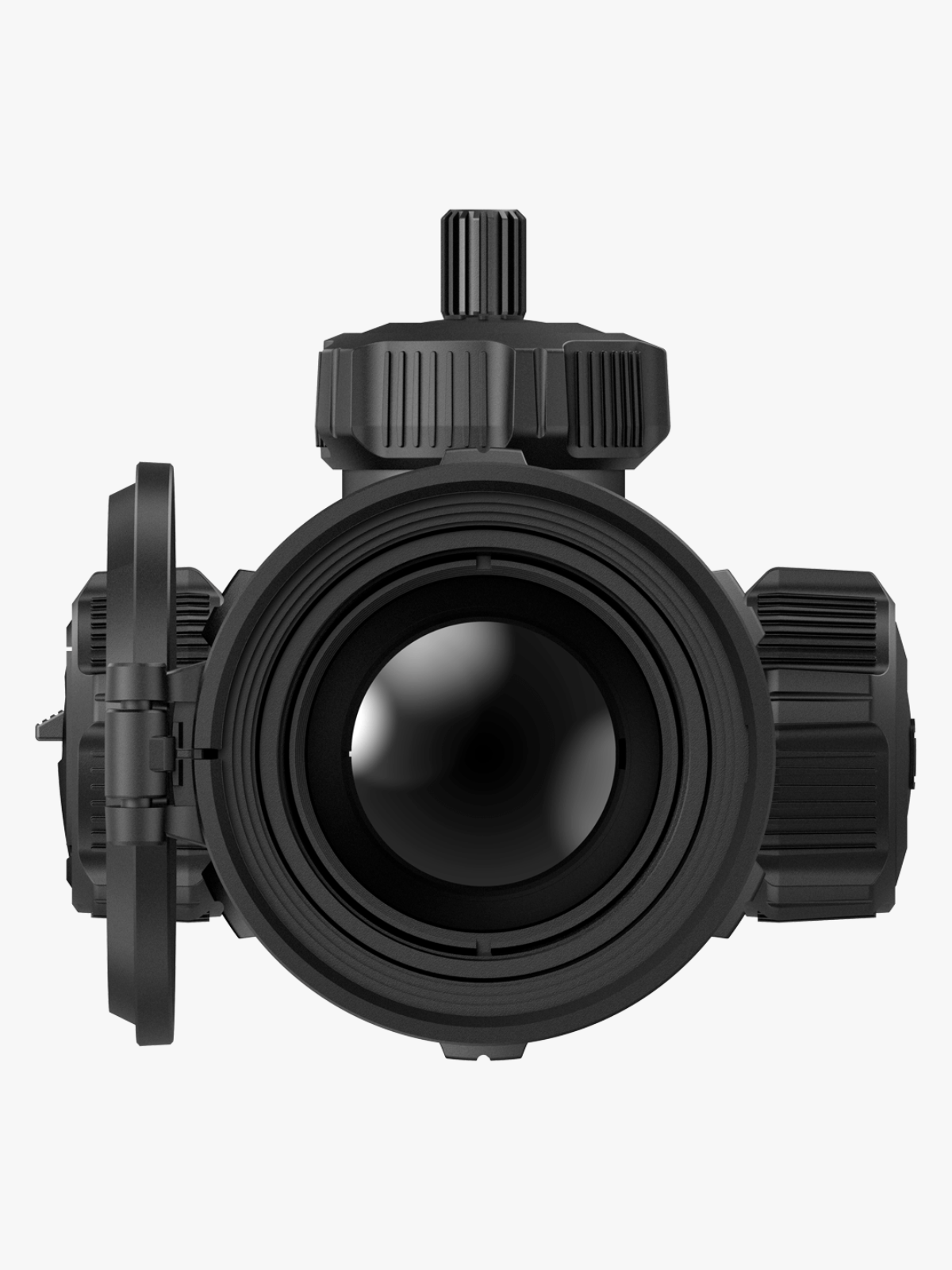

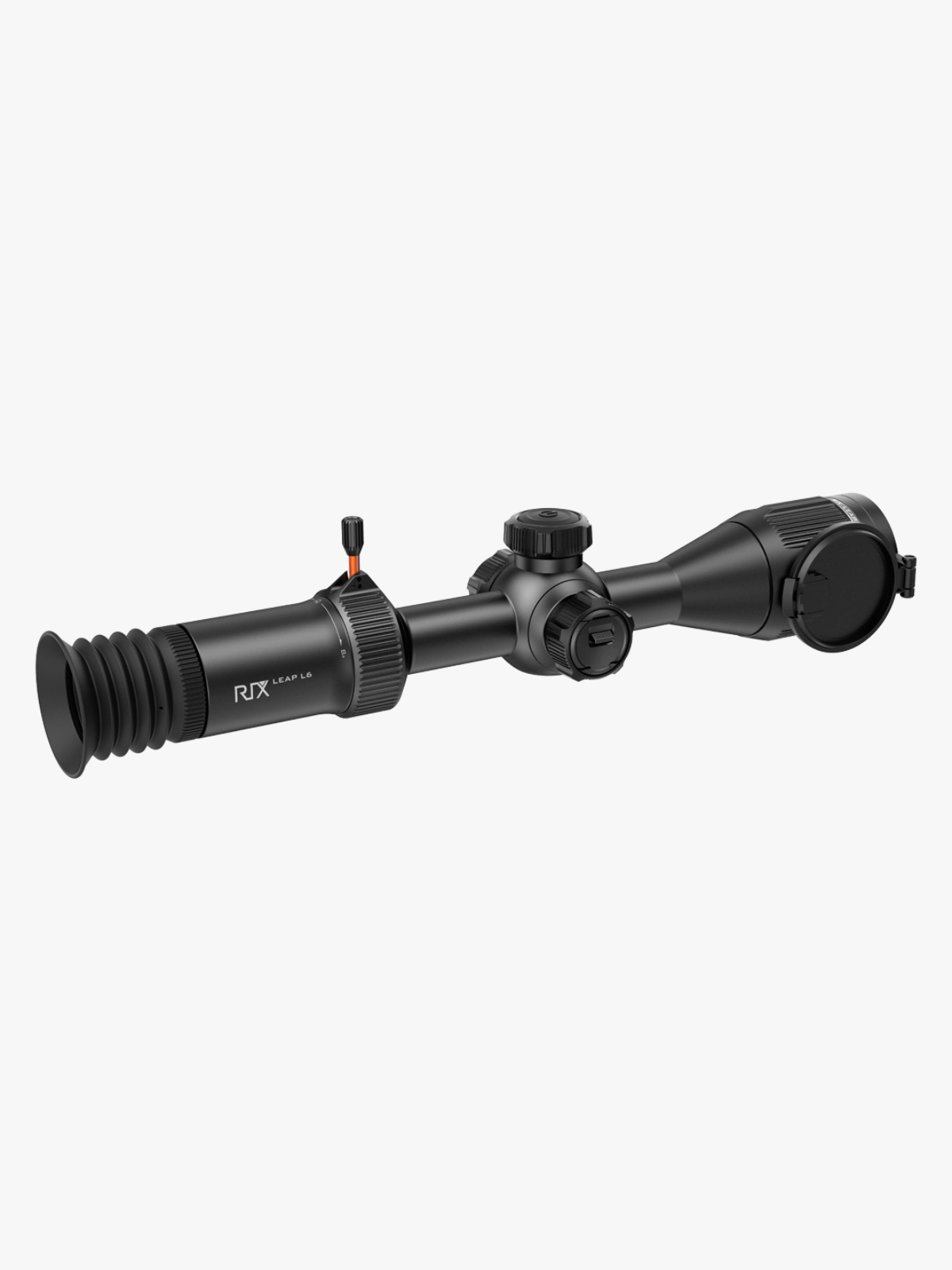

LEAP L6 Thermal Imaging Riflescopes

Core Features

A professional-grade thermal imaging riflescope engineered for precision targeting in low-light and adverse weather conditions. The optical system features 2.8-8.4x magnification with supplementary 1-4x digital zoom and picture-in-picture capability. Electronic zeroing includes five factory presets plus user-customizable configurations. The scope integrates photo and video recording functions with recoil-activated capture technology. Large zoom ring with throw lever facilitates intuitive magnification adjustment. 32GB onboard storage accommodates extensive photo and video content, with offloading via USB cable and wireless streaming to smartphones through the LEAP companion app. Comes equipped with two 30mm Picatinny-compatible mounting rings.

Advanced Thermal Sensor

The thermal imaging system utilizes a 640 x 360 resolution sensor with noise equivalent temperature differential performance below 25 milliKelvins and 50Hz refresh rate. These specifications ensure clear, low-noise thermal imagery with smooth motion rendering. The 1920 x 1080 OLED display provides exceptional color reproduction and contrast.

Flexible Magnification System

The optical zoom mechanism delivers a range from 2.8x to 8.4x magnification. Users can supplement optical magnification with up to 4x digital zoom for extended-range targeting. The picture-in-picture feature enables independent magnification of a secondary viewing window while maintaining full-frame situational awareness.

Reticle Customization Options

Users select from eight reticle patterns combined with six distinct image color palettes, providing 48 total configuration combinations. This extensive customization enables personalization based on lighting conditions and user preference.

Targeting and Ranging Capabilities

Electronic zeroing allows configuration through five built-in profiles or creation of custom zeroing profiles tailored to specific ammunition and firearm combinations. A stadiametric rangefinding system enables distance estimation without requiring dedicated laser ranging equipment.

Recording and Documentation

The scope records full audio-enabled video and captures still images. Recoil-activated recording automatically preserves footage from the moments preceding and following each shot. All content saves to 32GB of internal memory for later transfer via USB connection or wireless streaming.

Wireless Connectivity

Built-in 2.4GHz Wi-Fi capability enables real-time streaming to compatible smartphones through the LEAP app. Wireless data transmission supports software updates and remote content management.

Control System Design

Turret mechanisms and their central buttons manage multiple functions including electronic zeroing, photo/video activation, and settings adjustment. This integrated control approach reduces the number of external buttons while maintaining comprehensive feature access.

Power Management

A single 18650 rechargeable battery provides approximately 8 hours of continuous operational runtime. The replaceable battery design facilitates extended field use with backup power sources.

Environmental Protection

IP67 water and dust rating ensures reliable operation across challenging weather conditions including rain, fog, and moisture-rich environments.

Mounting System

Two 30mm Picatinny-compatible mounting rings provide secure attachment to standard rifle platforms.
