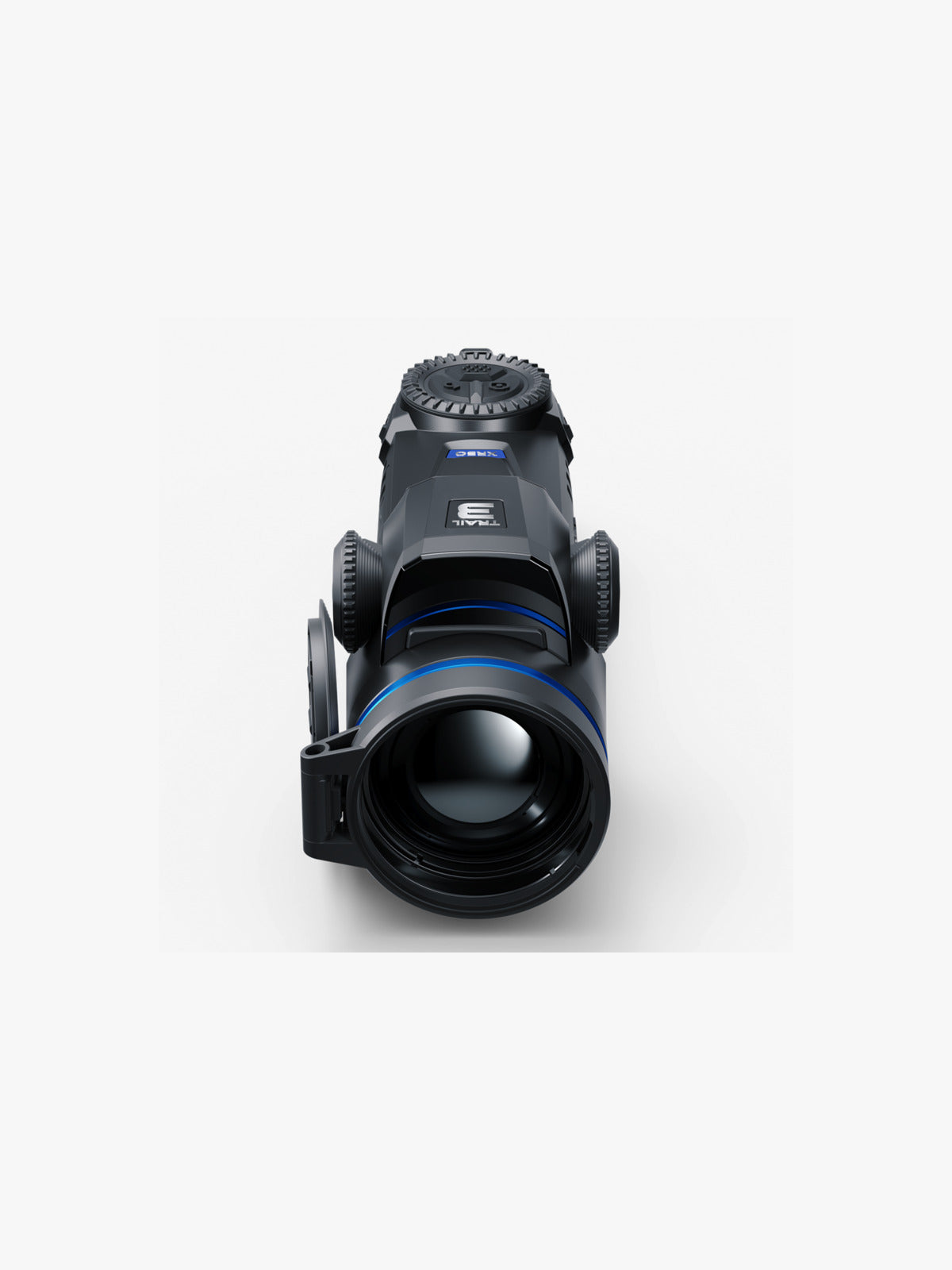

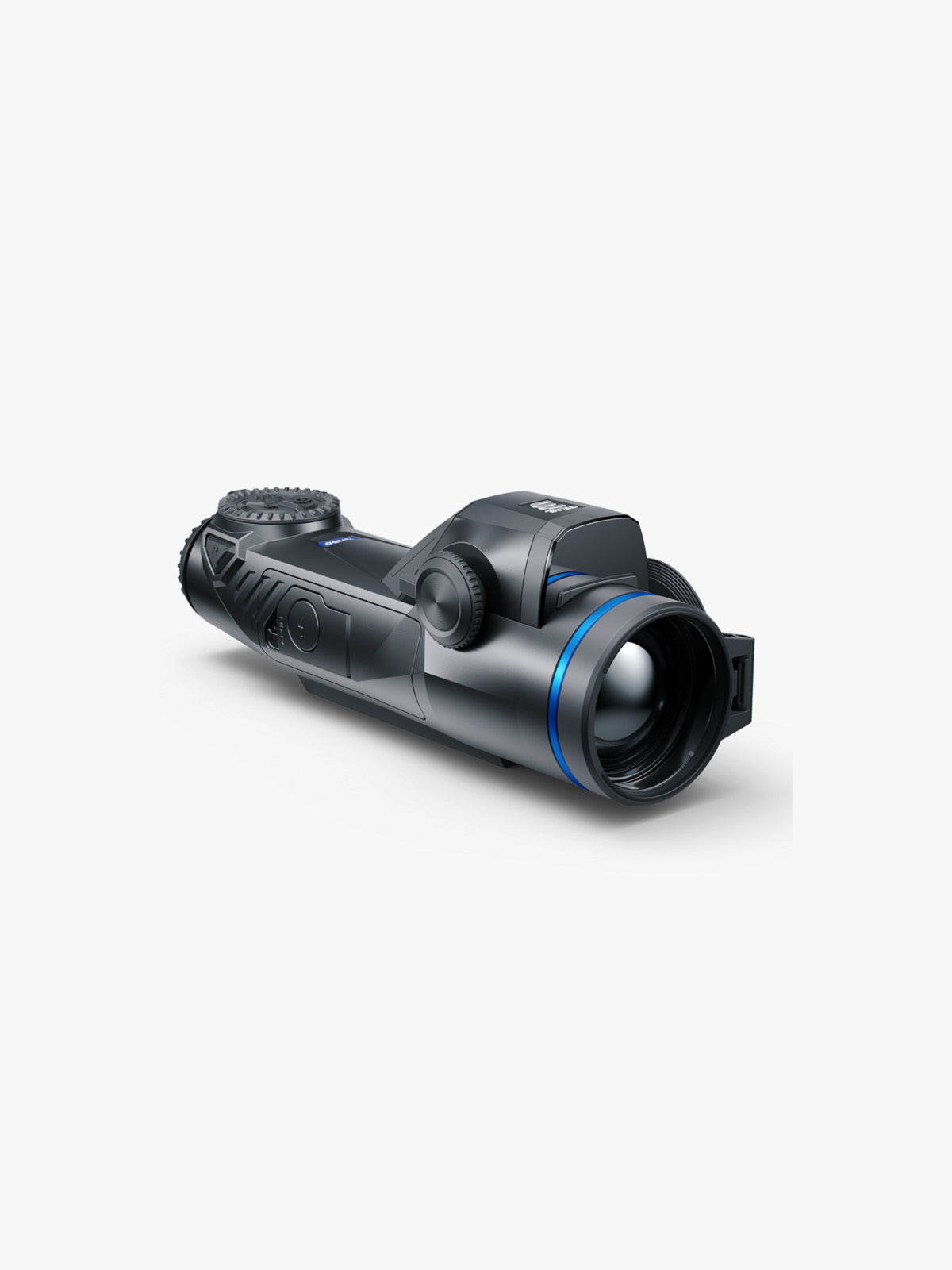

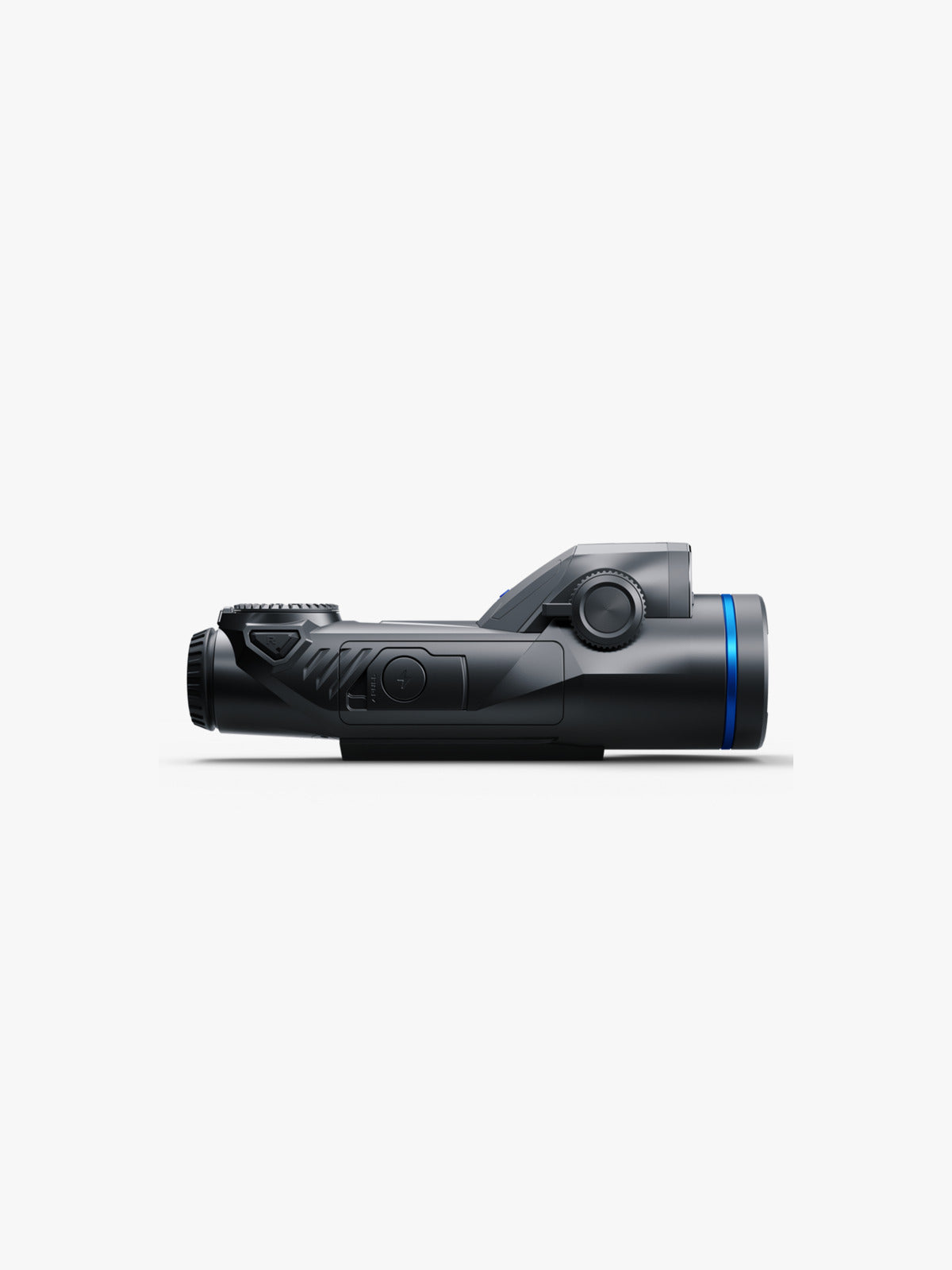

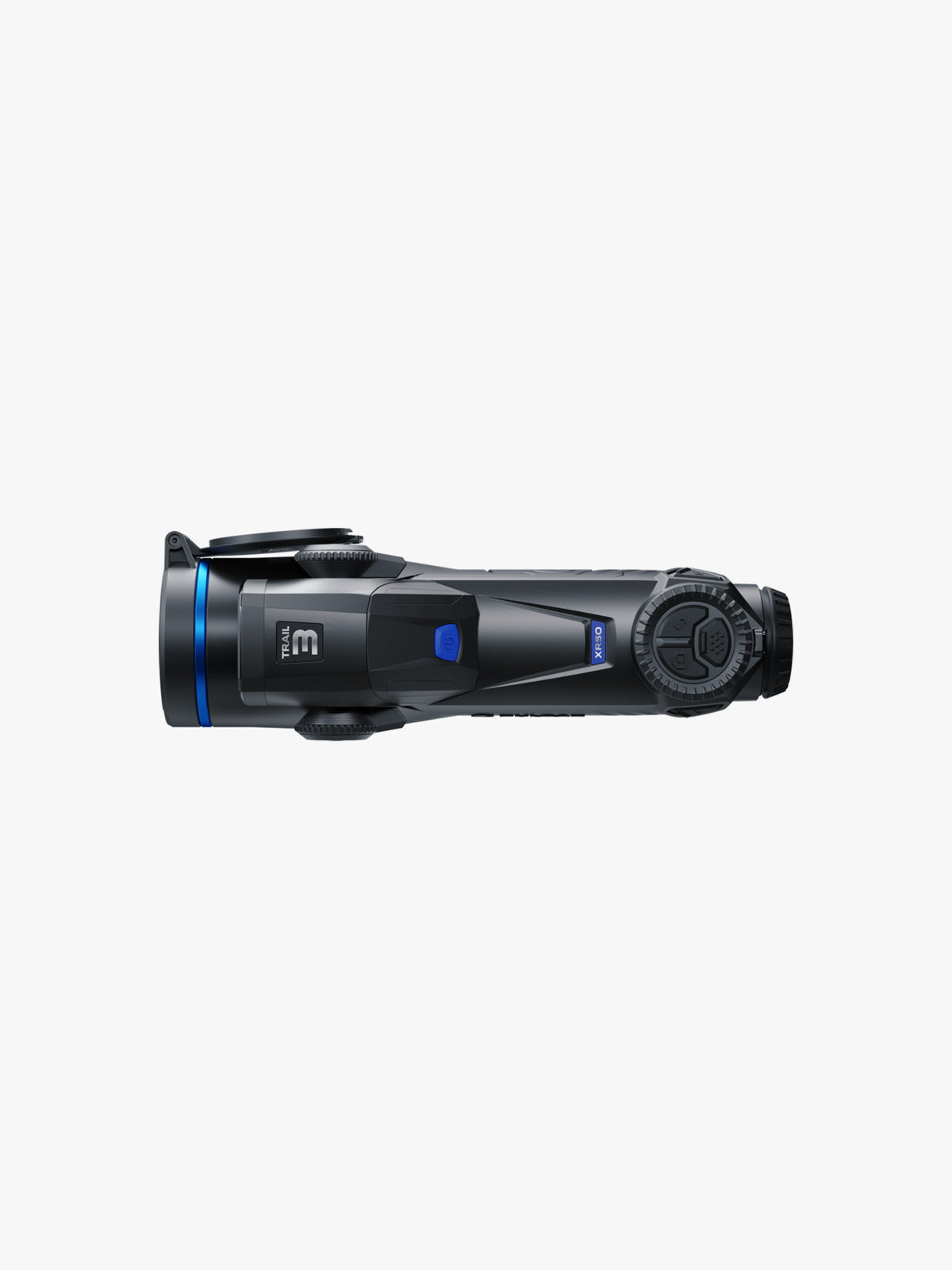

Pulsar Trail 3 LRF XR50 Thermal Riflescope
Thermal Rifle Scope
Core Features
Built for hunters who need reach and want the distance confirmed before the shot. The Trail 3 LRF XR50 runs a 640x480, 12 micron sensor with a system NETD under 18 mK, giving about 2,515 yards of detection on a 6 foot target and 3 to 24x magnification that covers a field edge to the far side of a pasture. The built-in rangefinder reads to 1,312 yards, runtime is up to 10 hours, and this kit ships with the mount. Backed by Pulsar's 3-year warranty, extended to 5 years with registration.
640 Sensor, Under 18 mK
The 640x480 sensor at 12 microns carries a system NETD under 18 mK, which keeps body detail on the animal when humidity flattens the scene.
Optics
Base magnification is 3x with digital zoom to 24x. Field of view is 8.8 degrees, or 15.4 m at 100 m.
Laser Rangefinder
The built-in rangefinder measures to 1,312 yards (1,200 m), so range and target sit in the same sight picture rather than needing a second device and a second look.
Power
Maximum operating time is 10 hours, a full night without a battery change.
Mount
Supplied with the mount in this kit (Bill Hicks code PL76588K).
Specifications
CORE CHARACTERISTICS:
| Category | Specification | Details |
|---|---|---|
| Thermal Sensor | Detector Type | Uncooled, 12 μm pixel pitch |
| Resolution | 640 x 480 | |
| NETD (Thermal Sensitivity) | System NETD <18 mK | |
| Detection Range (6ft object) | 2,300 meters / 2,515 yards | |
| Optics | Magnification | 3x to 24x (8x digital zoom) |
| Field of View | 8.8° (15.4 m @ 100 m) | |
| Rangefinding | Laser Rangefinder | Yes, built in |
| Maximum Range | 1,200 m (1,312 yd) | |
| Power | Runtime | Up to 10 hours |
| Durability | Warranty | 3 years, 5 years with registration |
| Mount | Mounting System | Mount included (kit) |
| Identification | Model / UPC | PL76588K / 840284905253 |
Note: Detection range is not the same as identification range. For identification ranges and other questions, contact us directly.
