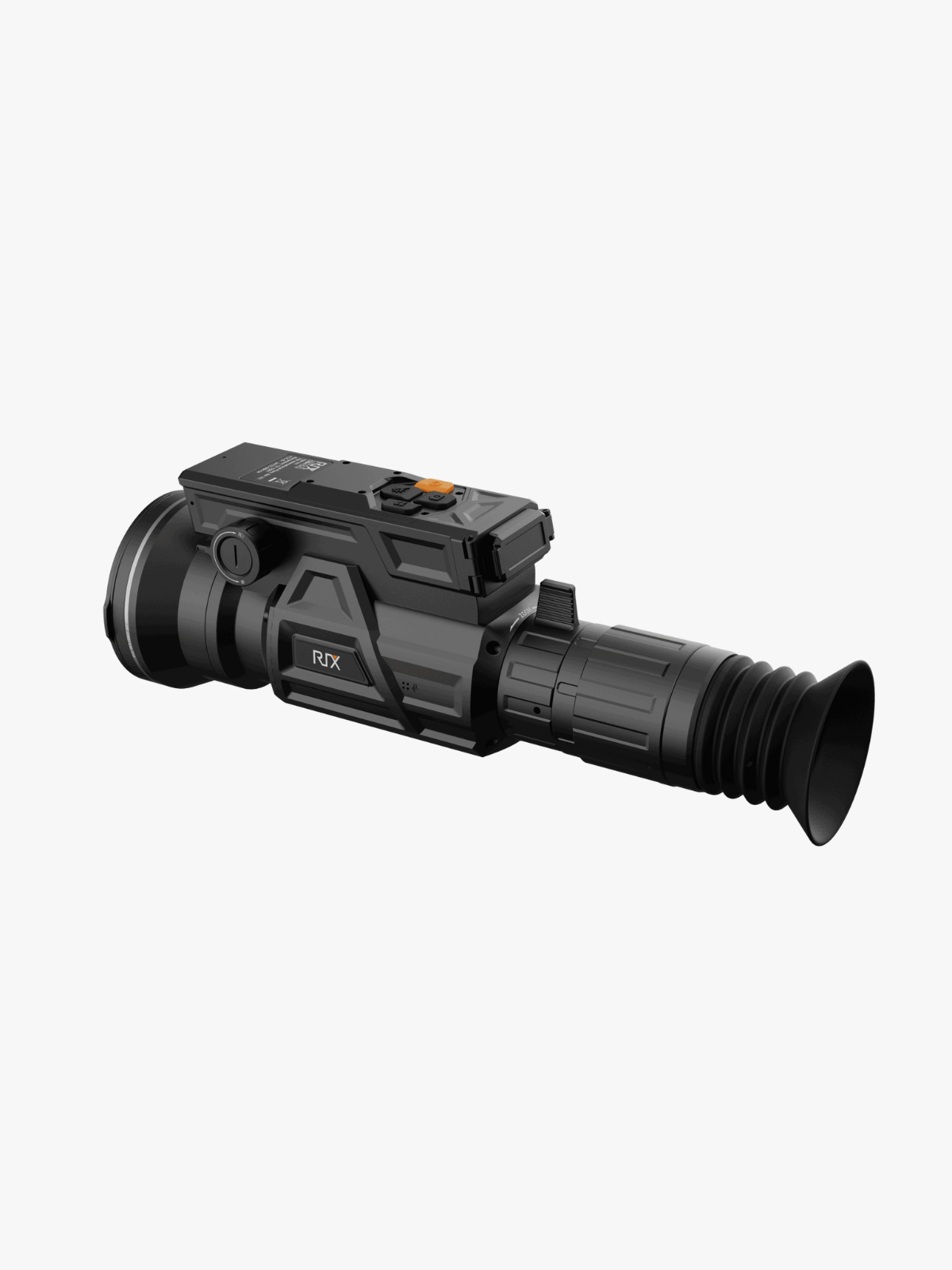

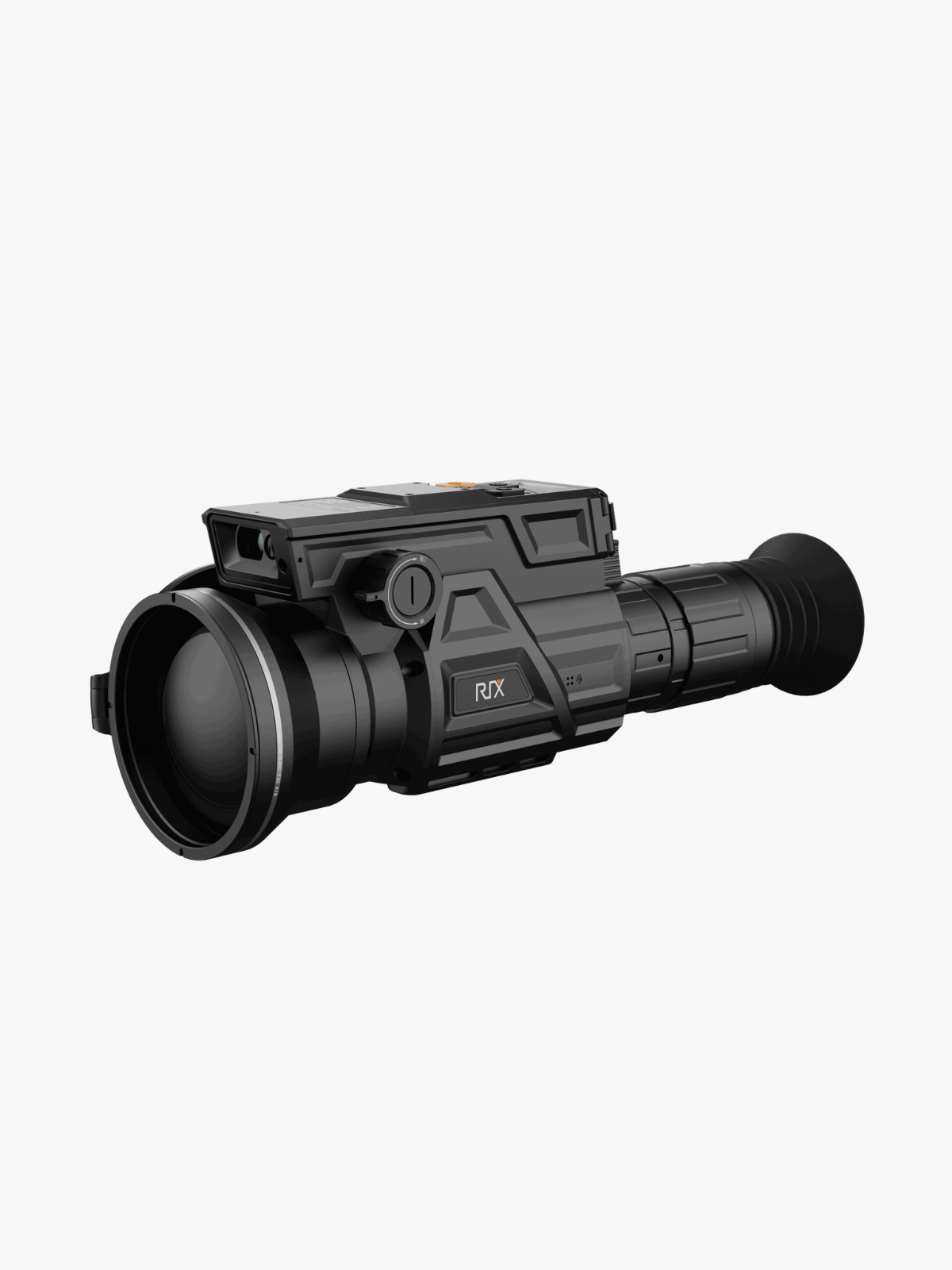

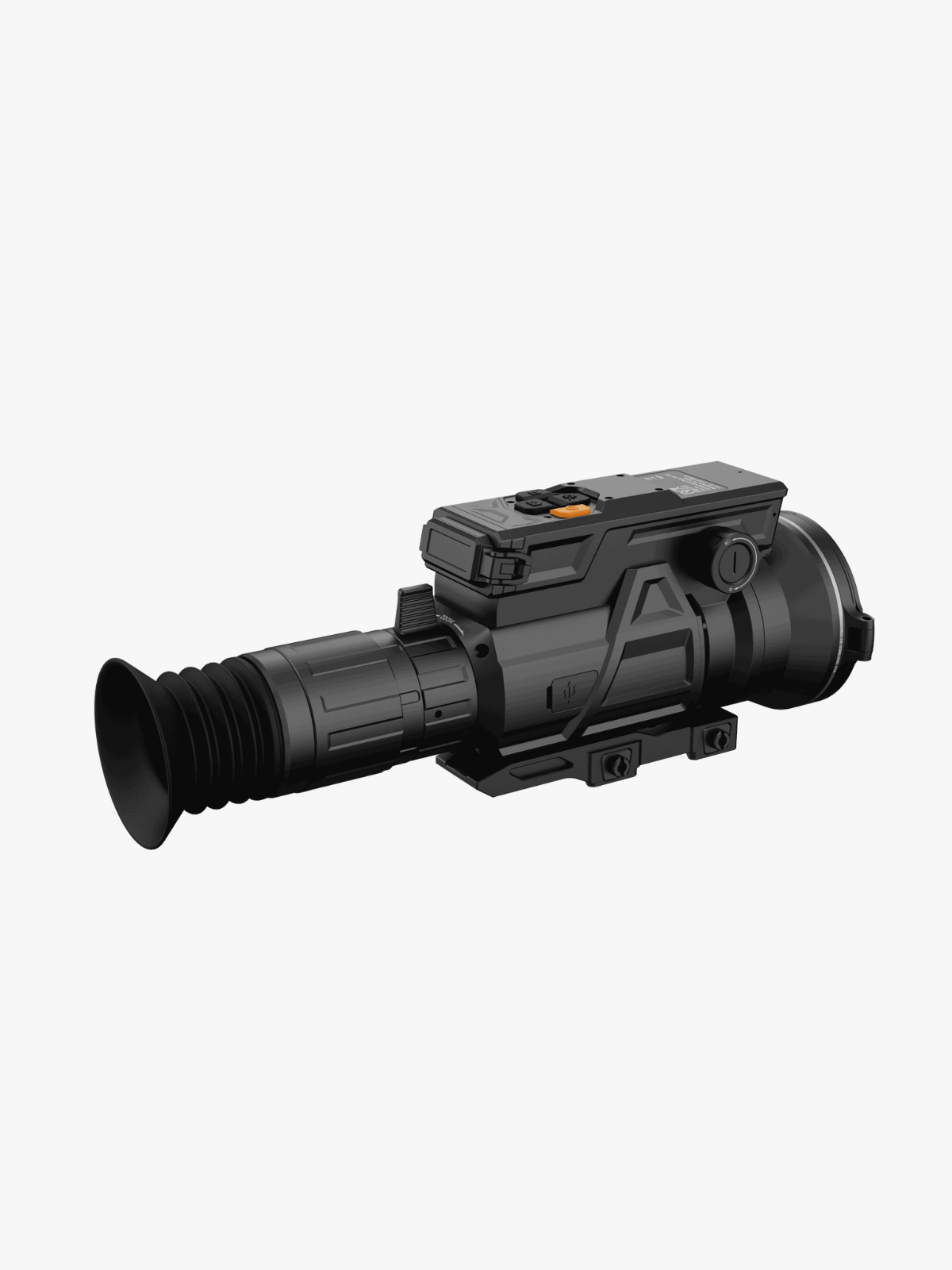

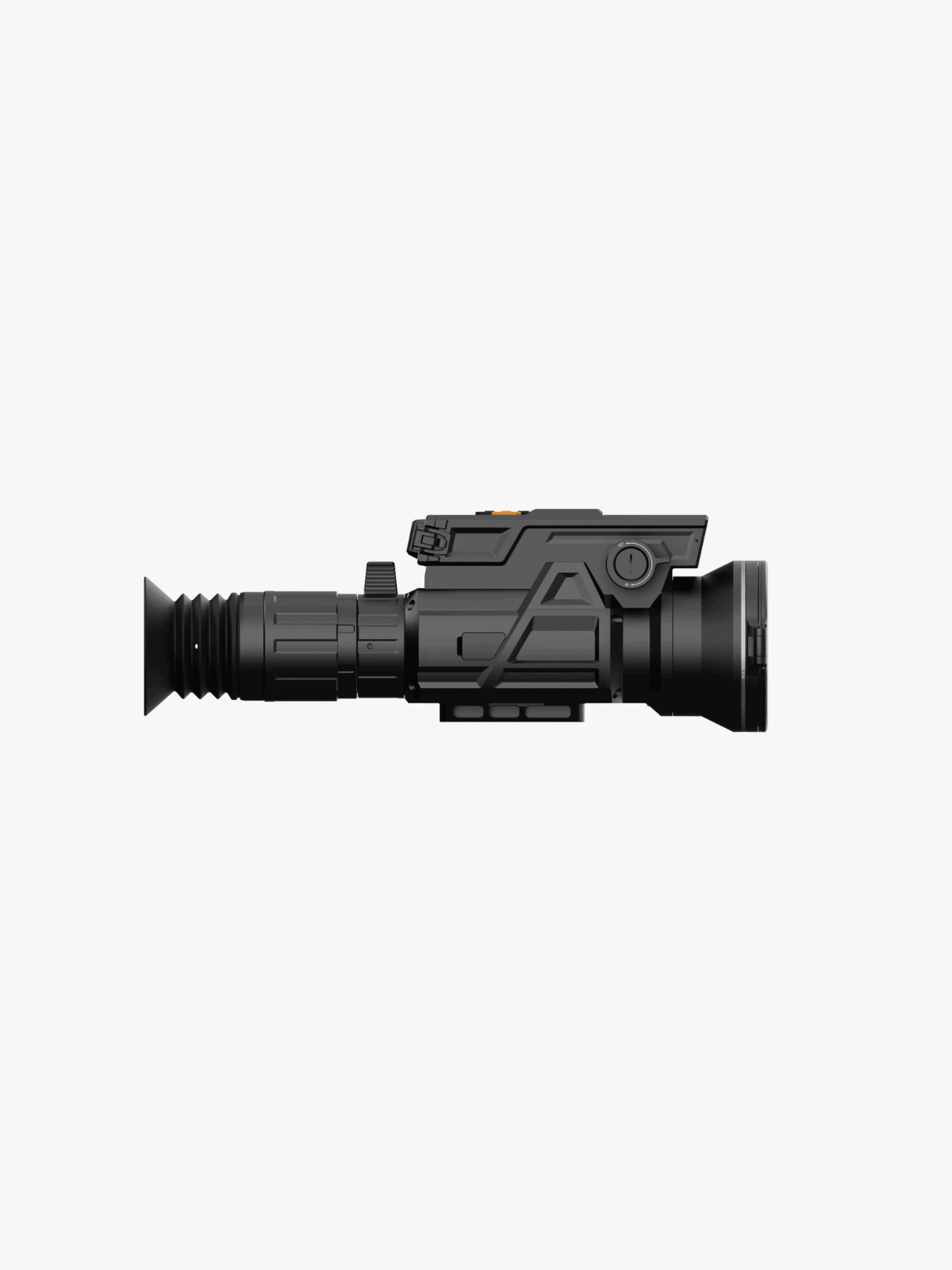

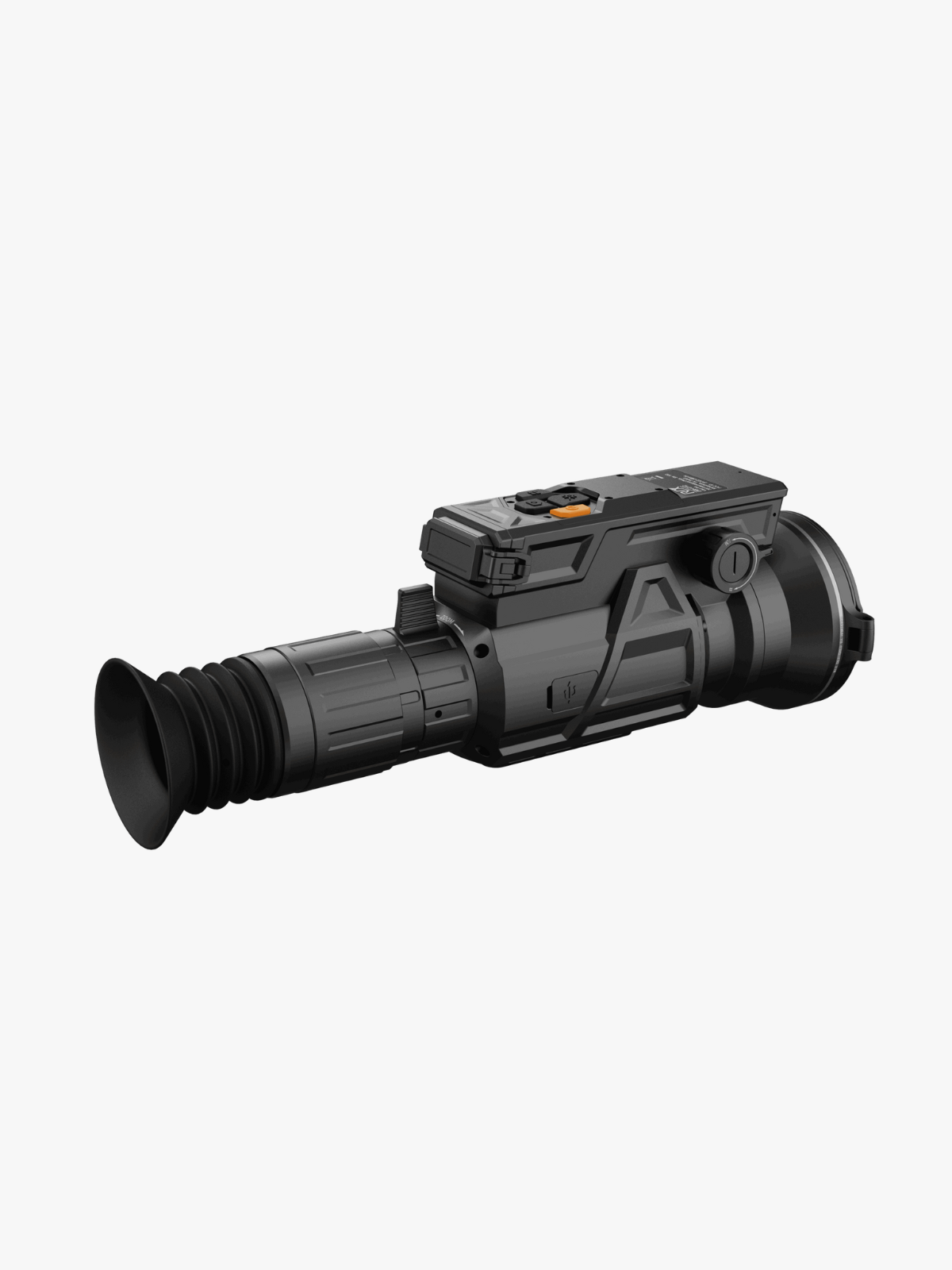

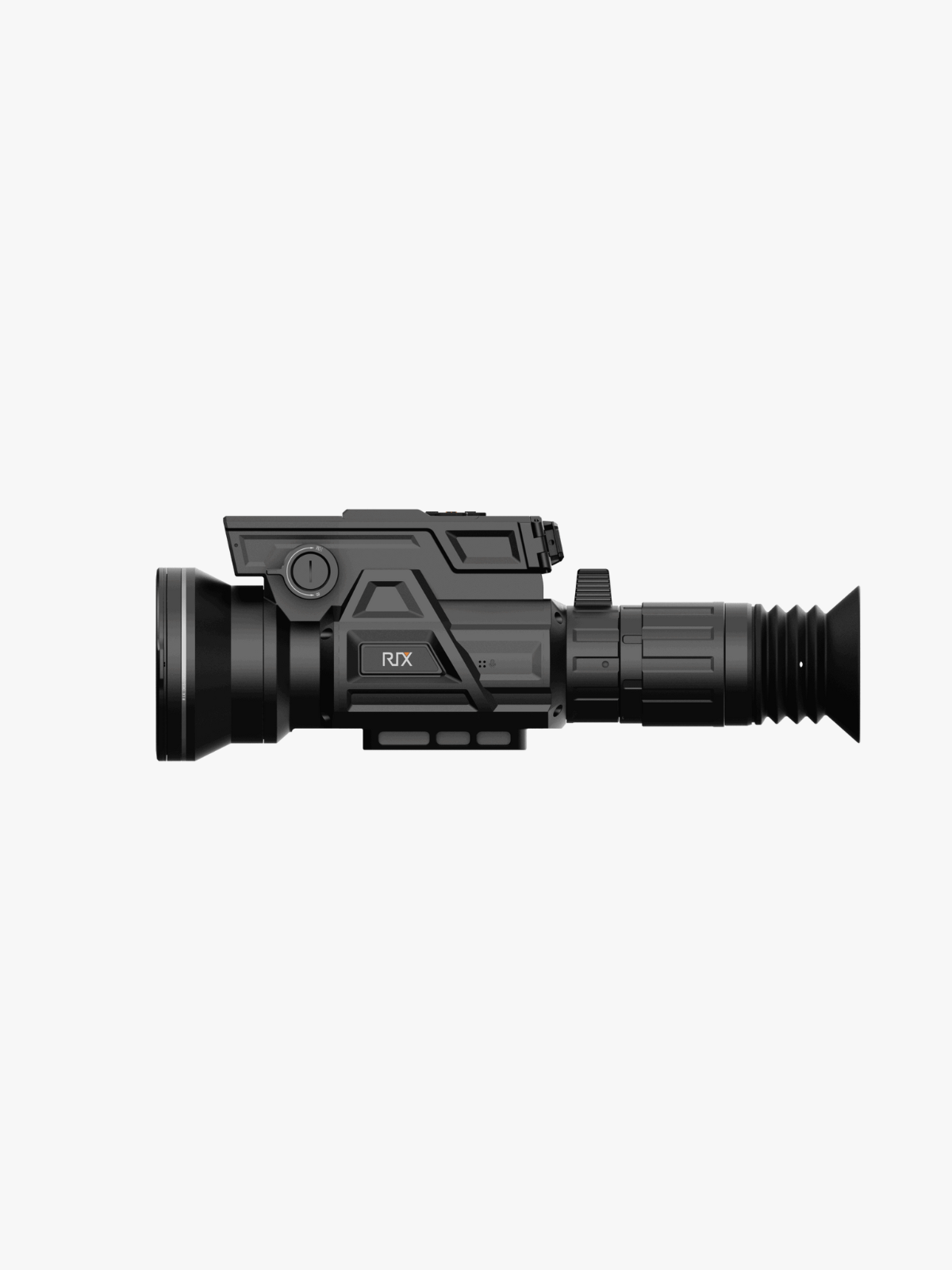

RIX DBH D12 Thermal Scope

Core Features

A professional-grade thermal imaging riflescope engineered specifically for hunters, incorporating integrated laser rangefinding, green laser pointer, and advanced ballistic computation capabilities. The optical system provides 3x base magnification, expandable to 20x through 6.6x digital zoom for detailed long-range observation. A 1280 x 1024 thermal sensor with noise equivalent temperature differential below 15 milliKelvins and 60Hz refresh rate delivers exceptionally clear, smooth thermal imagery. The scope includes photo and video recording with recoil-activated capture technology. 64GB onboard storage accommodates substantial media libraries, with wireless synchronization to smartphones through the RIX+ companion app. Power is supplied by two 18650 rechargeable batteries. The scope features a dual-lever return-to-zero quick-detach mount compatible with standard Picatinny rail systems.

Advanced Thermal Imaging

Equipped with a 1280 x 1024 resolution thermal sensor featuring 12-micrometer pixel pitch and noise equivalent temperature differential performance at or below 15 milliKelvins. The 60Hz refresh rate ensures smooth image rendering without motion artifacts. These specifications collectively deliver superior clarity and detail for extended-range observation.

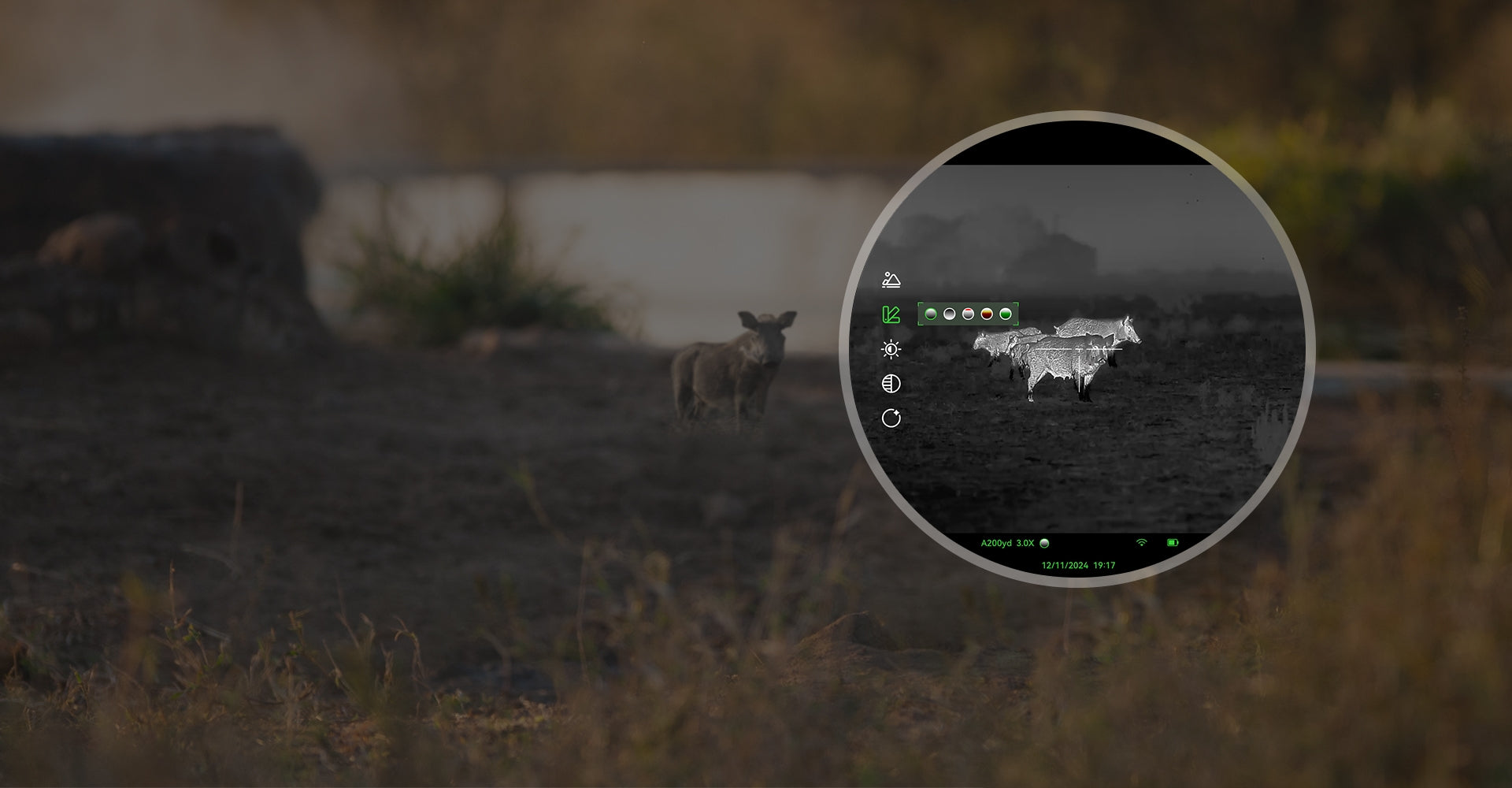

High-Resolution Display

A circular 1.03-inch OLED screen provides precise image representation with exceptional color depth and contrast. The display design maintains consistent 3/8-inch zero adjustment accuracy at 100 yards, enabling reliable sight calibration and repeatable accuracy.

Optical Magnification System

The objective lens measures 75mm, paired with 3x optical magnification. Supplementary 6.6x digital zoom expands total magnification to 20x, enabling identification and targeting of distant subjects. A quick-throw zoom lever facilitates rapid magnification changes during field operations.

Integrated Rangefinding System

A built-in laser rangefinder provides accurate distance measurements up to 1,312 yards, delivering critical targeting information quickly and reliably. The rangefinding data directly feeds into the ballistic calculation system.

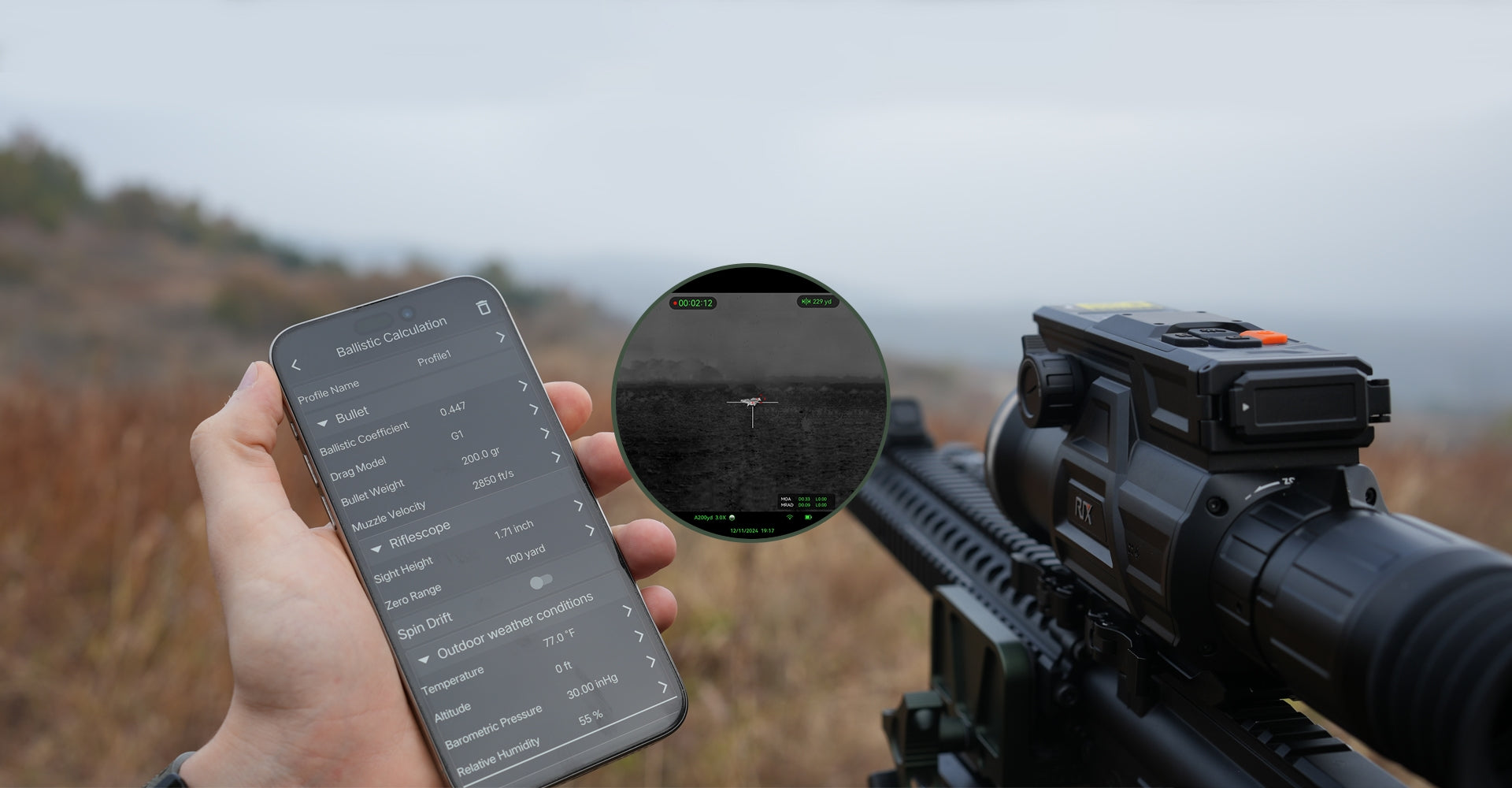

Ballistic Calculation Integration

The device incorporates an onboard ballistic calculator that processes multiple environmental variables including air temperature, wind speed, ammunition specifications, and target distance. The system automatically computes required aiming corrections and displays ballistic solutions on both the device screen and through the RIX+ mobile application. Wi-Fi connectivity synchronizes ballistic data between the scope and smartphone for enhanced planning.

Green Laser Pointer

An integrated green laser provides convenient marking capabilities for identifying downed game or other field targets without requiring separate equipment.

Targeting and Focusing

The dual-sided focusing mechanism features a 250-degree rotation cycle, enabling smooth focus adjustment across the full field of view. This design facilitates rapid target acquisition and precise image sharpening.

Recording and Documentation

The scope records video at 2560 x 2560 resolution with integrated audio and captures still images. Recoil-activated recording automatically preserves footage from the moments preceding and following each shot. All content saves to 64GB of internal memory.

Wireless Connectivity

Built-in Wi-Fi capability enables real-time data sharing with the RIX+ application, supporting ballistic calculations, media transfer, and remote device management.

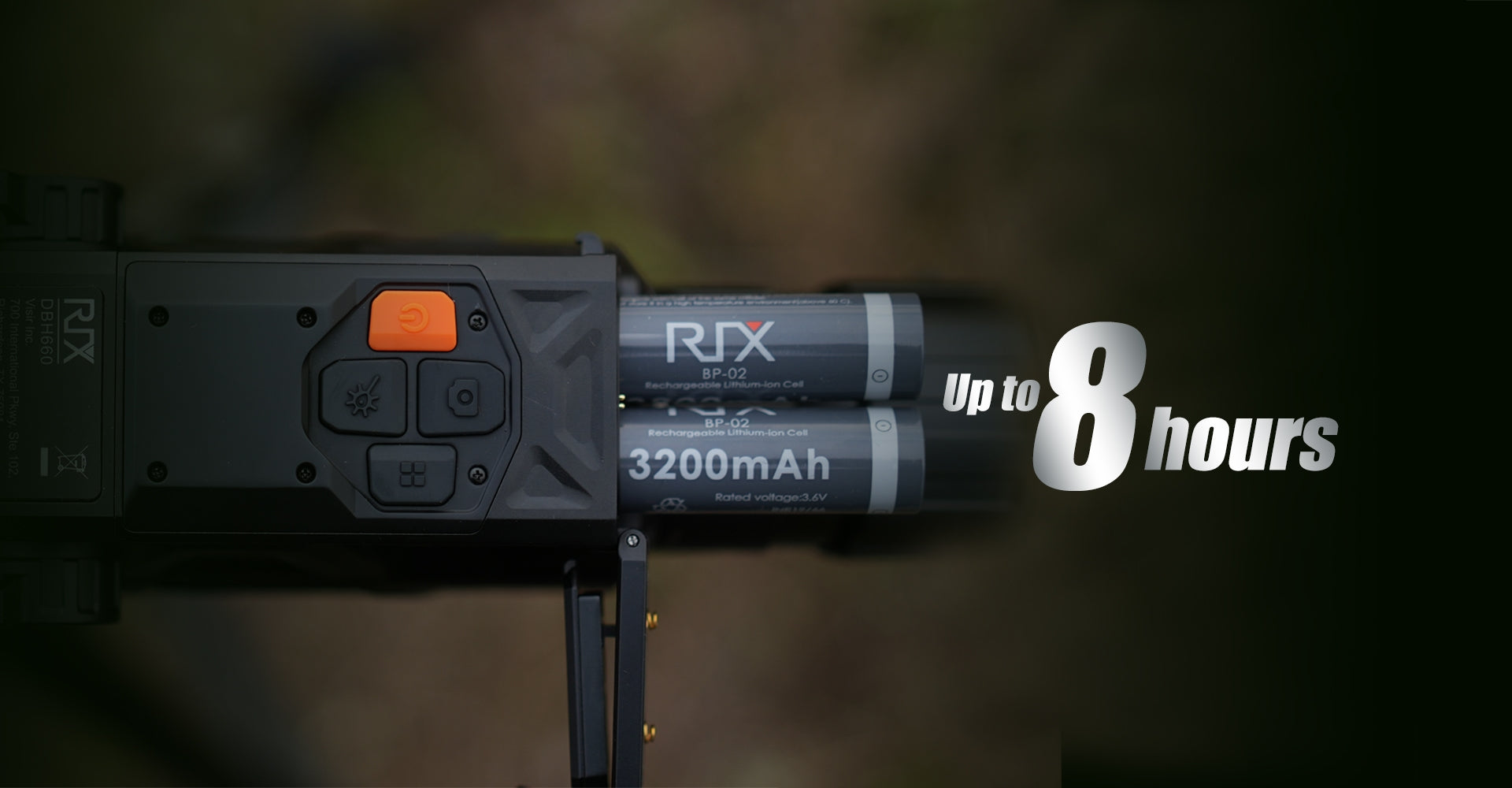

Power Management

Two 18650 rechargeable batteries provide approximately 8 hours of continuous operational runtime. The replaceable battery design facilitates extended field use and minimizes downtime during hunting expeditions.

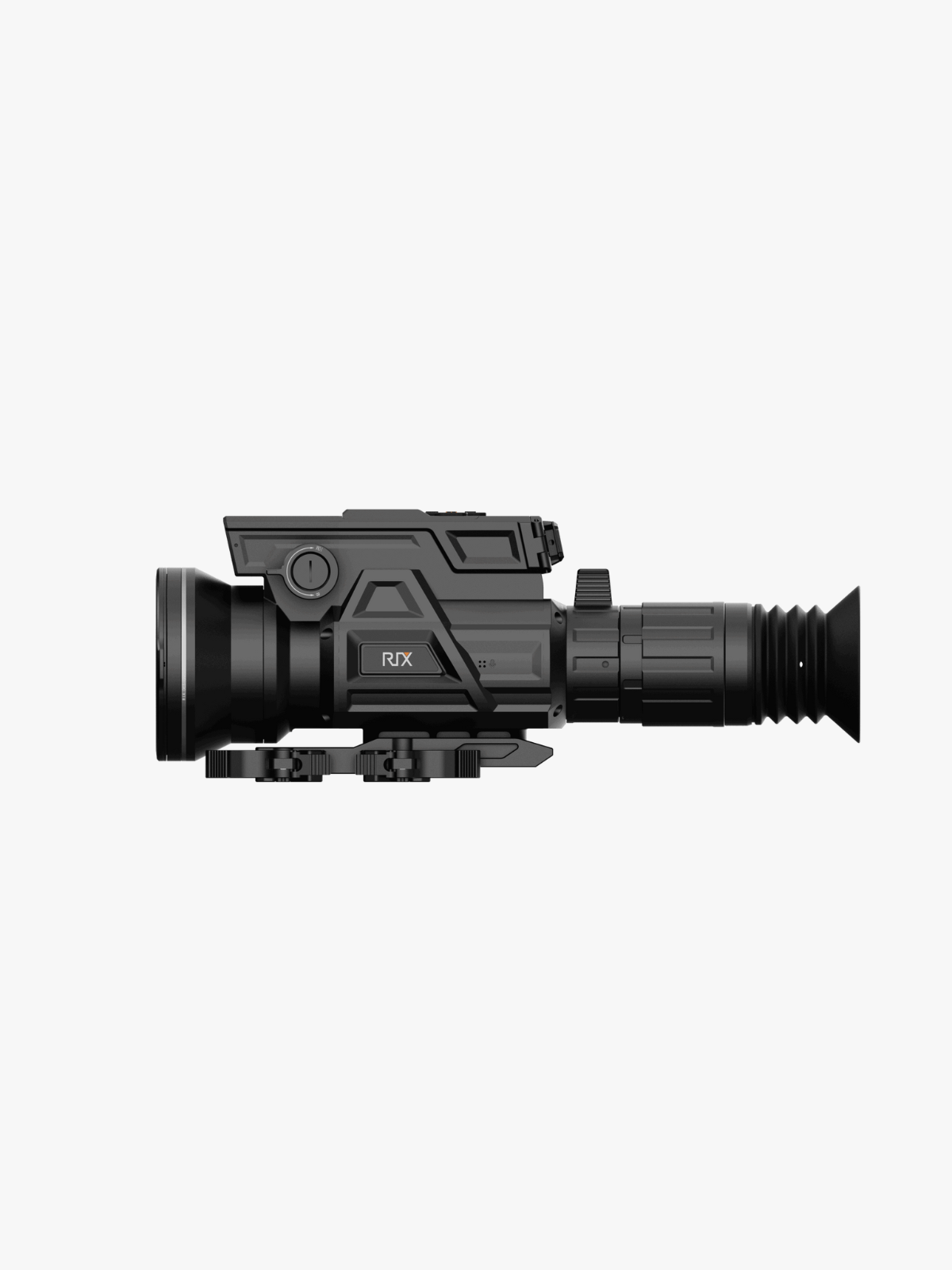

Mounting System

The dual-lever return-to-zero quick-detach mount enables secure attachment and rapid removal from standard Picatinny rail systems while maintaining precise sight alignment through repeated mounting and dismounting cycles.
