RIX Storm S2R Thermal Imaging Riflescope
Thermal Rifle Scope
Core Features
The Storm S2R is the entry point to a rangefinding thermal riflescope. It pairs a 256x192 sensor with thermal sensitivity under 25 mK and a 25 mm F1.0 lens for 3.5x base magnification, 1-4x digital zoom and a 1,422 yard detection range. The built-in laser rangefinder measures to 1,312 yards and feeds an onboard ballistic calculator with five zeroing profiles. A 1024x768 AMOLED display, 32 GB of recording memory, Wi-Fi to the RIX+ app and a replaceable 18650 battery round it out. The aluminum alloy body weighs 0.9 lb, is IP67 rated and handles 1000g of recoil. Ships with a Picatinny QD mount and two batteries. 3 year warranty.
Compact 256 Thermal
A 12 micron 256x192 sensor at 50 Hz keeps motion smooth and the image clean in fog or humidity. The 25 mm F1.0 lens gives a wide 7.0 x 5.3 degree view at 3.5x, well suited to hog and coyote work inside a few hundred yards.
Rangefinder and Ballistics
Aim, press, and the S2R returns a distance to 1,312 yards with 1.09 yard accuracy. The reading feeds the built-in ballistic calculator, which shows a corrected hold for your load. Five profiles store different rifles.
Reticles and Picture in Picture
32 reticle combinations (8 styles in 4 colors) are selectable on the scope, and the rangefinder readout position and style can be adjusted in the app. Picture-in-Picture shows a magnified view of the center of the image while the main view stays at 1x.
Recording and RIX+ App
32 GB of built-in storage records photo and video at 1024x768. Recoil Activated Video saves a clip automatically when the scope detects the shot. Built-in Wi-Fi connects to the RIX+ app on iOS and Android for live view, downloads and firmware updates.
Power
A swappable 18650 battery runs about 4.5 hours at 72 F, and the USB-C port accepts 5V external power or a battery pack.
Built for the Field

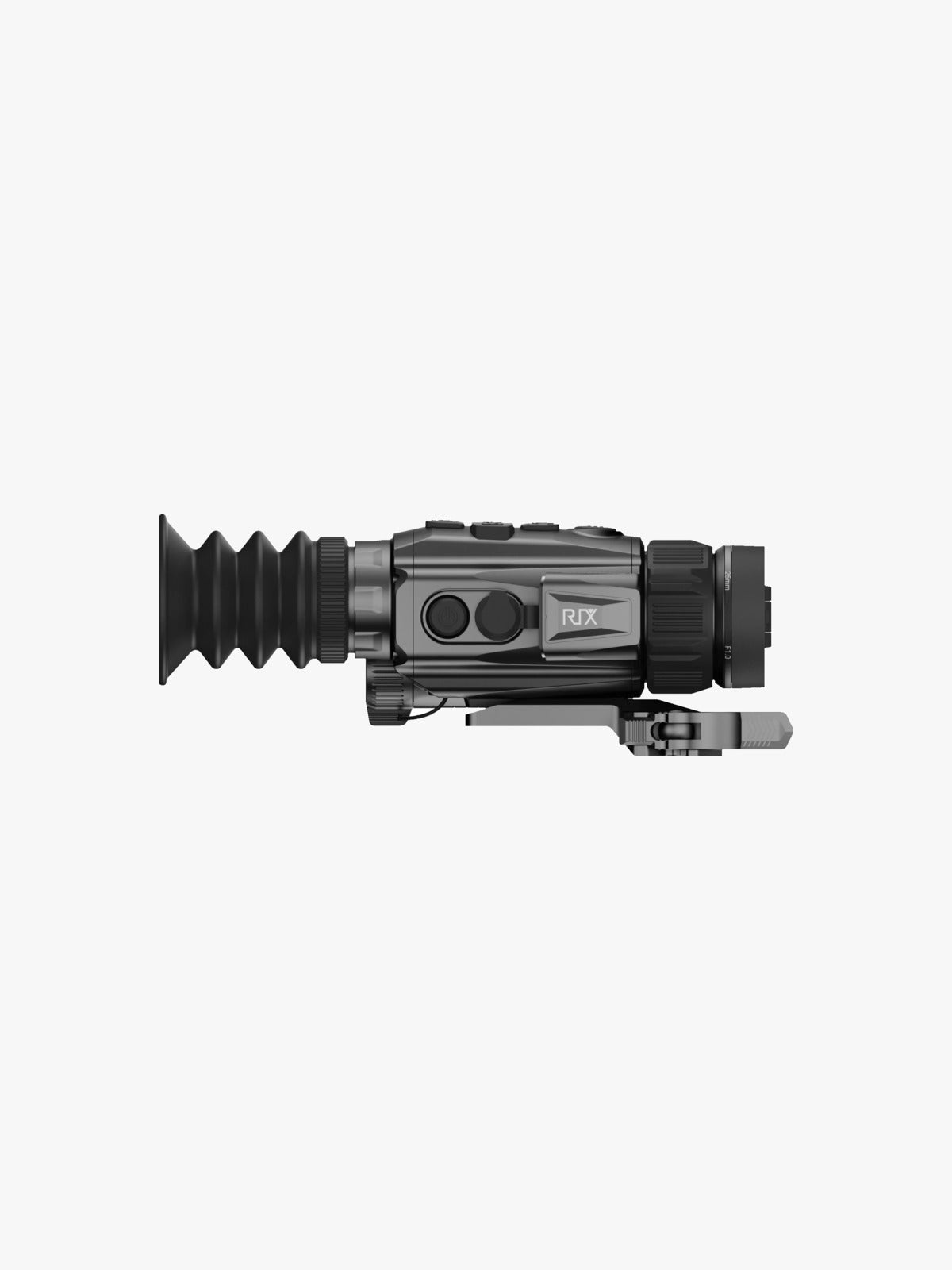

IP67 waterproof, rated for -4 F to 122 F and 1000g of recoil. The Picatinny QD mount drops onto AR and bolt rifles without a separate purchase, and at 6.0 inches it also works as a handheld scanner.
Specifications
CORE CHARACTERISTICS:
| Category | Specification | Details |
|---|---|---|
| Thermal Sensor | Type | VOx uncooled |
| Resolution | 256 x 192 | |
| Pixel Pitch | 12 micron | |
| NETD (Thermal Sensitivity) | <25 mK | |
| Frame Rate | 50 Hz | |
| Optics | Objective Lens | 25 mm, F1.0 |
| Base Magnification | 3.5x | |
| Digital Zoom | 1-4x | |
| Field of View | 7.0 x 5.3 degrees (12.3 x 9.2 yd at 100 yd) | |
| Eye Relief | 48 mm | |
| Diopter Adjustment | -5 to +5 D | |
| Detection Range | 1,422 yards | |
| Display | Display | AMOLED, 1024 x 768 |
| Reticles | 8 styles, 4 colors (32 combinations) | |
| Picture-in-Picture | Yes | |
| Rangefinding & Ballistics | Laser Rangefinder | Yes, integrated |
| Maximum Measuring Range | 1,312 yards | |
| Measurement Accuracy | +/- 1.09 yards | |
| Ballistic Calculator | Yes, onboard, 5 zeroing profiles | |
| Recording & Connectivity | Video / Photo Resolution | 1024 x 768 (.mp4 / .jpg) |
| Built-in Memory | 32 GB | |
| Recoil Activated Video | Yes | |
| Wi-Fi / App | Yes / RIX+ (iOS and Android) | |
| Power | Battery | Replaceable 18650, two included |
| Operating Time | About 4.5 hours at 72 F | |
| External Power | 5V USB Type-C | |
| Durability | Recoil Rating | 1000g / 6000 J |
| Waterproof Rating | IP67 | |
| Operating Temperature | -4 F to 122 F | |
| Body | Aluminum alloy | |
| Warranty | 3 years | |
| Physical | Dimensions | 6.0 x 3.3 x 2.4 in |
| Weight | 0.9 lb | |
| Mount | Mounting System | Picatinny QD mount (included) |
| Identification | Model | RIX Storm S2R |
| UPC | 850042107850 | |
| Package Includes | Contents | Storm S2R scope, Picatinny QD mount, throw lever, dust cover, battery charger, 2x batteries, USB Type-C cable, 10 thermal zeroing targets, hex key, lens cloth |
Note: Detection range is not the same as identification range. For identification ranges and other questions, contact us directly.
